動柱式加工機
Hot- 產品型號:
- TCM-666 / TCM-466 / TCM-866
- 原產地:
- 台灣
詳細規格及用途描述

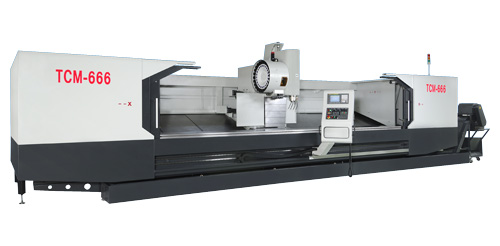

TCM-666 (TCM-466, TCM-866)
Worktable: 600 x 6000mm (600 x 4000mm, 600 x 8000mm)
X-axis travel: 6000mm (4000mm, 8000mm)
Y/Z-axis travel: 600mm/600mm
X/Y/Z-axis slide-way: Linear scale (roller-type)
X-axis: With dual gearboxes as well as helical rack & pinion (backlash-free)
Y/Z-axis transmission: 40mm dia., high-speed, low-noise ball screw
X/Y/Z-axis feed rate: 20/24/24m/min
Spindle: BT40/8000rpm (12000rpm optional)
