CCD Bar Code Scanning Module

CCD Bar Code Scanning Module

產品型號:
MCR14

詳細規格及用途描述

Descriptions

The MCR Series Scan Module is a perfect choice for your OEM design. The MCR Series brings the benefits of bar code scanning to all types of OEM devices. Now kiosks, medical instruments, diagnostic equipment, lottery terminals, vending machines and countless other appliances can all be equipped with the leading-edge scanning technology and reliability.
The MCR Series has been designed to provide the highest scanning performance in the smallest package possible. For added versatility, allowing for fast, cost-effective interchangeability when upgrading or modifying your OEM device for specialized applications.

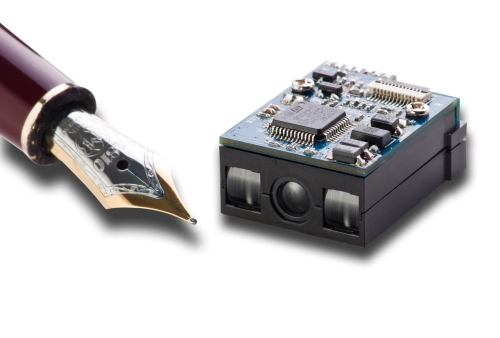

MCR14 is a miniature size and yet long-range CCD bar code scanning module with high sensitive liner image sensor. As operation under 100,000 LUX ambient light resistance, its cutting-edge smart detection technique design comes with up to 500 scans per second scan speed and up to 500mm reading distance, and aiding in various major bar codes, hand-on software-programming function, this MCR14 is your best choice of CCD type bar code scanning module to be suitable for application where needs a high performance and the reliable operation. The scanner module’s miniature size makes MCR14 ideal for integration into data terminals and other small devices.
The scanner module’s unique open system architecture allows MCR14 to accept third party and custom plug-ins, giving the MCR14 virtually unlimited application flexibility.


Specifications

◎ Light Source Visible Red light 632nm LED
◎ Depth Of Field Up to 500mm@20mil/0.5mm, PCS90%
◎ Resolution 4mil/0.1mm@PCS90%
◎ Ambient Light 100,000 Lux Max
◎ Operating Voltage DC +5V ±5%
◎ Operating current 150mA
◎ Standby current 50mA
◎ Reading Indicator Beeper
◎ Scan Speed Smart detection, speed up to 500 scans per second.
◎ Operating Temp 0°C to 50°C (32°F to 122°F)
◎ Storage Temp -20°C to 70°C (-4°F to 158°F)
◎ Relative Humidity 20% to 95% (Non-condensing)
◎ Anti-Shock Design 2000G, 0.7ms, 3 axes
◎ Interface UART/USB
◎ Cable FPC 12pin Pitch 0.5
◎ Connector Approx. 0.25 oz(7 g)
◎ Weight 11.5mm H x 20mm W x 25mm D (REF)
