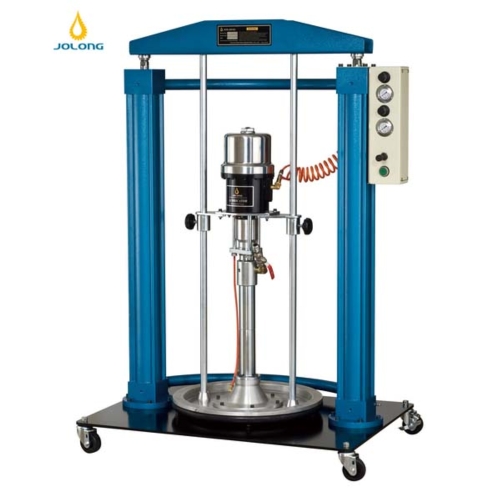

Pressurized Fluid Pump

Pressurized Fluid Pump

產品型號:
HV104
原產地:
台灣

詳細規格及用途描述

The Outside Dimension:
Length: 740 mm
Width: 1050 mm
Mini Height: 1440 mm
Max Height: 2440 mm

Mode: HV104
Capacity: 200L
Air Input Pressure: 3~7 bar 40~100 psi
Pressure Ratio: 50:1
Grease Output Pressure: 150~350 bar 2000~5000 psi
Deliver Rate: 26 g/cycle
Hose Length: -
N.W.: 188 kgs
G.W.: 230 kgs
CUFT: 20.5'

This pump use for suction No.0 ~ No.3 and high viscosity grease; it had two pneumatic cylinder to push the grease and make the pump shovel the grease easily.
