Flat Head Rivet Nuts

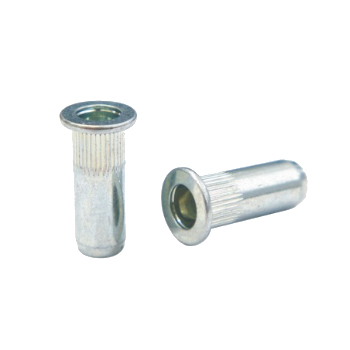

Knurled Cylindrical Threaded Inserts, Flat Head, Closed Type
Our company is one of the main producers of Knurled Nut and Stainless Steel Rivet Nut in Taiwan, and is highly regarded for quality products.


PART NO.: SS. MF4-CL
THREAD SIZE: M4x0.7
GRIP RANGE: 0.5-2.5
HOLE SIZE+0.1/-0: 6.00
A±0.3: 9.00
B max.: 5.97
C±0.3: 16.50
H±0.2: 1.00

PART NO.: SS. MF5-CL
THREAD SIZE: M5x0.8
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 7.00
A±0.3: 10.00
B max.: 6.97
C±0.3: 19.00
H±0.2: 1.00

PART NO.: SS. MF6-CL
THREAD SIZE: M6x1.0
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 9.00
A±0.3: 12.00
B max.: 8.97
C±0.3: 22.50
H±0.2: 1.50


PART NO.: SS. MF8-CL
THREAD SIZE: M8x1.25
GRIP RANGE: 0.7-3.0
HOLE SIZE+0.1/-0: 11.00
A±0.3: 15.00
B max.: 10.97
C±0.3: 25.50
H±0.2: 1.50

PART NO.: SS. MF10-CL
THREAD SIZE: M10x1.5
GRIP RANGE: 1.0-4.0
HOLE SIZE+0.1/-0: 13.00
A±0.3: 17.00
B max.: 12.97
C±0.3: 30.00
H±0.2: 2.00
