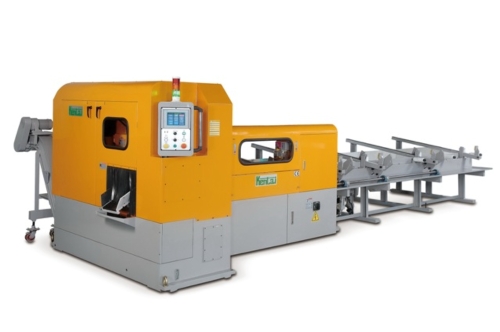

High Speed Circular Sawing Machine

High Speed Circular Sawing Machine

產品型號:
KTC-130SP
原產地:
台灣

詳細規格及用途描述

Cut-off Capacity: KTC-130SP
Round Bar: 20 ~ 130 mm
Square Bar: 20 ~ 100 mm
Round Tube: 20 ~ 130 mm
Square Tube: 20 ~ 100 mm

Saw Head & Spindle:
TCT Carbide tipped sawblade: Ø360 x 2.6 t mm Ø425 x 2.7 t mm
HSS High-speed steel sawblade type: Ø420 / 5 t (max.)
Sawblade rotation speed: 10 ~ 160 rpm
Chip removal: Steel brush disk

Motor:
Spindle driving motor: 15 kw (20Hp) / 4p
Hydraulic pump motor: 3.75 kw (5Hp) / 4p
Ac servo motor / GFC: 2.14 kw (Siemens) / 2 kw (Mitsubishi)
AC servo motor / Saw head: 4.87 kw (Siemens) / 5 kw (Mitsubishi)
Coolant pump motor: 0.19 kw / 2p

Hydraulic Device:
Work driving pressure: 70 kg/cm2 (7 MPa)
Tank Capacity: 100 liters

Pneumatic Device:
Work operating pressure:4 ~ 6 kg/cm2 (55 ~ 85 psi)

Others:
Dimension (L x W x H): 7290 x 2990 x 1908 mm
Weight (Main machine): 4000 kgs
Weight (Loading magazine): 1210 kgs

* The specifications subject to change without prior notice.
