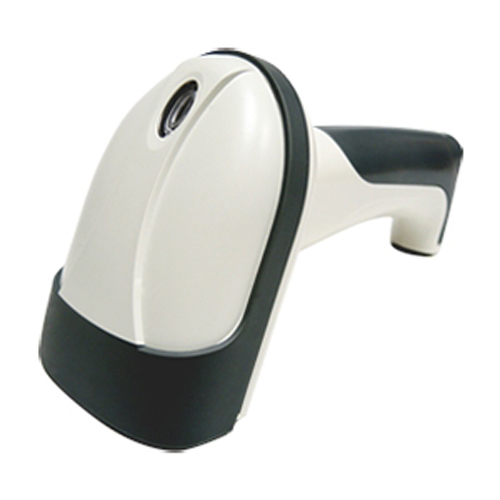

MT7955TA HIGH DENSITY BARCODE SCANNER WITH LASER AIMER FOR SMB RETAIL MANAGEMENT

MT7955TA HIGH DENSITY BARCODE SCANNER WITH LASER AIMER FOR SMB RETAIL MANAGEMENT

產品型號:
MT7955TA

詳細規格及用途描述

Introduction MT7950TA is Marson's highest specification handheld scanner. MT7950TA can easily scan the 3mil barcode. With high sensitivity of infrared sensors, place MT7950TA on a dedicated stand, MT7950TA will able to sensing and scanning barcodes automatically. Built-in vibrator allows users to be able to know is the barcode has been scan correctly in a noisy environment. Features High Density Senso Outstanding Performance Read on Screen Vibrating Indicator High sensitive Auto triggering Easy Configuration Easy Aiming Green LED Illumination Specifications Optic & Performance Light Source 630nm visible red LED 525nm visible green LED Aimer 650nm visible red laser Sensor 2048 pixels CCD Sensor Scan Rate 200 scans/ sec Resolution 3mil/ 0.075mm Scan Angle 40° Print Contrast 30% Width of Field 130mm(PCS=90%,1mm Code) Memory N/A D.O.F (Environment: 800 lux) 4 Mil Code39: 25 ~ 110mm 5 Mil Code39: 15 ~ 120mm 10 Mil Code39: 0 ~ 280mm 15 Mil Code39: 0~ 350mm 13 Mil UPC/ EAN: 0 ~ 290mm Physical Characteristics Dimension W71×L166×H84 mm Weight 146g±5g Color Gray Material ABS+TPR Cable 2.1 m Trigger Scan Button Indicator Buzzer, LED, Vibrator Power Operation Voltage 5 VDC ± 5 % Working Current < 200mA Standby Curren < 60mA Idle Current N/A Surge Current < 1300mA Battery N/A Number of Scan (per full charge) N/A Connectivity Radio Bluetooth 2.1 +EDR (Class1) Range 100M (line of sight) Interface/ Profile SPP (Android, Mac), HID(Android, iOS, Windows), USB/USB-VCP User Environment Operating Temperature 0~40˚C Storage Temperature -10~60˚C Humidity 20%~85%RH (Non-condensing) Drop Durability 1.8M Sealing N/A Ambient Light 10000 Lux (Fluorescent Light) 1D Symbologies UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar 2D Symbologies N/A Regulatory EMC CE, FCC part15, Class B ESD Functional after 4KV contact, 8KV Air discharge Safety RoHS 2.0, WEEE
