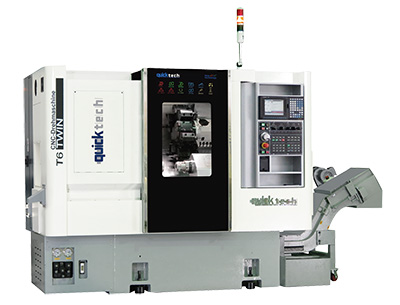

This compact machine will easily accomplish the demanding turning applications for mass production.
• 6” chuck ( Option：8” chuck)
•4,000 rpm high speed spindle
•7.5 kw spindle power
•12 station servo turret
( Option：power turret - BMT55)
•Hydraulic tailstock or sub spindle for long work piece
•Sub spindle tor back machining
Mitsubishi AC Servo7.5kw
BMT-45 Power Turret
This compact machine will easily accomplish the demanding turning applications for mass production. Furthermore, with available live tooling, and C-axis capabilities milling, turning applications can be completed in one single machine.
The machine is equipped with high precision, HIWIN linear guideways. The use of 35mm rails throughout the machine increases stability and accuracy, and allows heavier cuts to be achieved. All axes are equipped with digital drives that deliver feed velocities of 30m/ min.
On top of having T6 – Compact features, this model also packed with sub spindle for more back machining. Furthermore, with available live tooling, and C-axis capabilities milling, turning application can be completed in one single machine.
Sub Spindle Mitsubish AC Servo3.7kw
Equiped with sub spindle, all the back machining is easily achieved.
