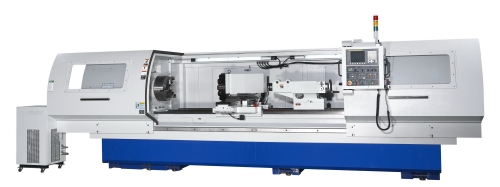

CNC TEACH-IN LATHE

CNC TEACH-IN LATHE

產品型號:
RIC-TC26120
原產地:
台灣

詳細規格及用途描述

※ SPECIAL PRICE ※

SPECIFICATION:
* WITH FANUC 0i-TD 8.4" COLOR LCD, 220V 3PH;
MANUAL GUIDE 0i MAIN SPINDLE MOTORα15i(15/18.5KW)
X & Z SERVO MOTORα12iABS/α12ABS
* FOR FANUC CONTROL : MPG ONLY
* SWING OVER BED 670MM
* SWING OVER CROSS SLIDE 400MM
* DISTANCE BETWEEN CENTER 4100MM
* MAIN SPINDLE 3-STEP SPEED AUTO
* SPINDLE NOSE A1-11(MAX. 1500RPM)
* SPINDLE BORE 105MM
* SAUTER 8 POSITION ELECTRIC TURRET
* 12" 3-JAW SCROLL CHUCK(SK)TYPE
* THRHOLE 105MM (TAIWAN MADE)
* STEADY REST WITH ROLLERS (50-300MM)(HEAVY DUTY TYPE)
* FOLLOW REST (50-250MM)
* 2010 NEW CE STANDARD FOR EUROPE (INCL EMC FILTER)
* LIVE CENTER #MT5
* BORING TOOL HOLDER ON THE CROSS SLIDE SIZE (DIA.100)
* HARD JAWS ON 12" 3-JAW CHUCK
* SOFT JAWS ON 12" 3-JAW CHUCK
* AIR GUN
* OIL MIST COLLECTOR
* TRANSFORMER 40KVA FOR SERVOMOTOR (INPUT: 380V; OUTPUT 220V)
* COOLANT EQUIPMENT & LUBRICANT EQUIPMENT
* HALF GUARDING
* WORK LIGHT & MANUAL TAILSTOCK
* TOOLS & TOOL BOX
