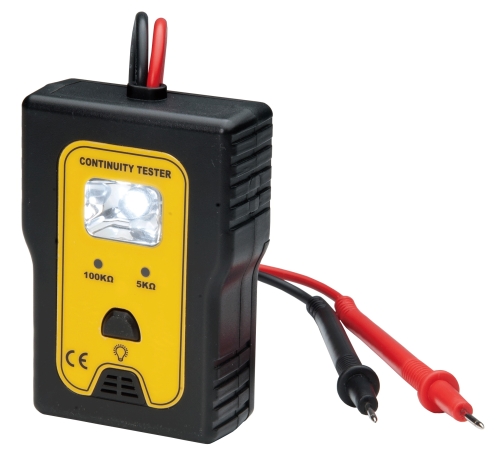

Continuity Tester
- 產品型號:
- 4102
詳細規格及用途描述
This product is designed to measure the continuity of electric circuits and components. The measurement result will be indicated by LED and buzzer. The illumination is very helpful want technician is working in dark environment.
SPECIFICATION
(1) Power: AAA x 3
(2) Continuity Resistance: 0 ~ 5 KΩ; 0 ~ 100 KΩ
(3) No-Load Voltage: < 7V
(4) Testing Current: < 70 uA
(5) Maximum Voltage: ≦ 400VAC
(6) Frequency: 0 ~ 60 Hz
