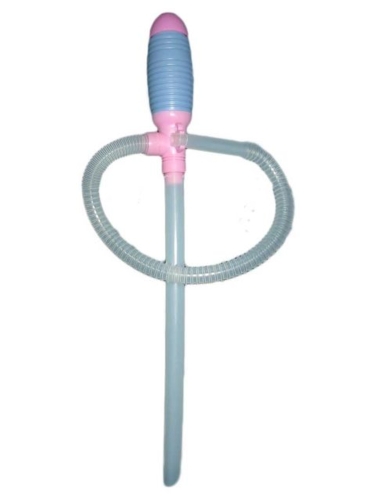

SIPHON PUMPS
SIPHON PUMPS

產品型號:ADX-102 原產地:台灣

詳細規格及用途描述

Pump Type: Siphon
Maximum Fluid Temperature: 140˚F / 60˚C
Wetted Parts: Polyethylene
Maximum Viscosity: 500 SSU
To suit all containers up to 16” (400mm)
27” (690mm) delivery hose
Weight 140g


Flow: 2.5 GPM
Mounting: 5-Gal Pail Adapter, for 1, 2-1/2 & 5 gallon containers.
Suction Tube ID/OD: 0.9" / 0.95"
Suction Tube Length: 16"
Discharge Tube ID/OD: 0.65" / 0.75"
Discharge Length: 27"

Standard Packing: 100pcs/ctn, NW: 14.0kgs, GW: 15kgs, Cuft: 4.5'


Quick action pump, easily fills or empties kerosene, light oils, gasoline and various water-based solvents.
Air vent controls siphoning.
Pumps to higher levels and siphons to lower levels.
