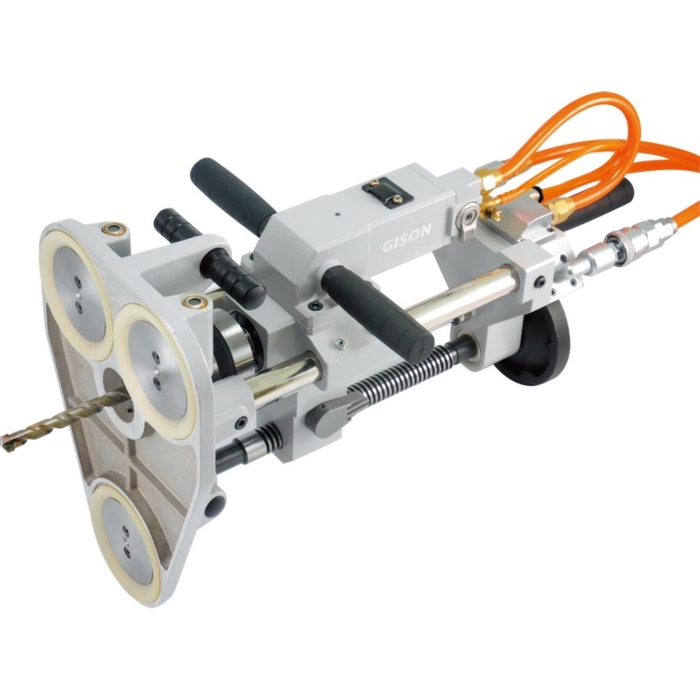

Portable Air Drilling Machine (include Vacuum Suction Fixing Base)
Portable Air Drilling Machine (include Vacuum Suction Fixing Base)

產品型號:GPD-231 原產地:台灣

詳細規格及用途描述

Air Drilling Machine (Vacuum Suction Type)
The Vacuum Suction firms the machine onto the surface of the cement wall / lumber plywood / stone / metal firmly and directly free of extra fixing devices. The GPD-231 is more convenient then the Portable Magnetic Drilling Machine. The GPD-231 Portable Drilling Machine (Vacuum Suction Type) can replace the Portable Magnetic Drilling Machine and is used on various coarse and flat surface.

Specification:
Max. Free Speed : 1,500 rpm
Drill Chuck Size: 5/8”(16 mm)
Max. Drill Bit Length: 125 mm
Suction Cup Size : 86 mm x 3 pcs
Drilling Bore Size : 43 mm
Weight : 9.53 kgs
Size : 46 x 24 x 28 cm (LxWxH)
Working Pressure : 6.3 kgf/cm2 (90 psi)
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Cons. : 0.56 m3/min (20 SCFM)
Sound Pressure : 92 dBA
* without Drill Bit

Features:
•The conventional suction can only apply to smooth surfaces, but the novel vacuum suction fixing base can apply to coarse surfaces such as cement wall, lumber plywood, stone back, etc.
•The vacuum suction firms the machine onto the surface of the wall firmly and directly free of extra fixing devices.( It is necessary to confirm that the vacuum suction works indeed onto the surface prior to releasing the machine. )
•The workpiece and the machine are attached firmly and closely by the vacuum suction, so no moving workpiece bothers the worker.
•The air source shared by the vacuum suction and the machine demands one vent pipe only. Don’t need two air sources.
•The machine has stepless speed regulation and the max. free speed is 1,500 rpm.
•The water yield is valve-controllable and the water comes from either the drill chuck or the bores.
•The ON/OFF switch controls over rapid and slow feed / escape.
•The Drilling Machine can work with the small 4 HP air compressor without the additional vacuum pump (vacuum generator).
•The GPD-231 Portable Drilling Machine (Vacuum Suction Type) can replace the Portable Magnetic Drilling Machine and is used on various coarse and flat surface. The Portable Magnetic Drilling Machine can be only used on iron material.
