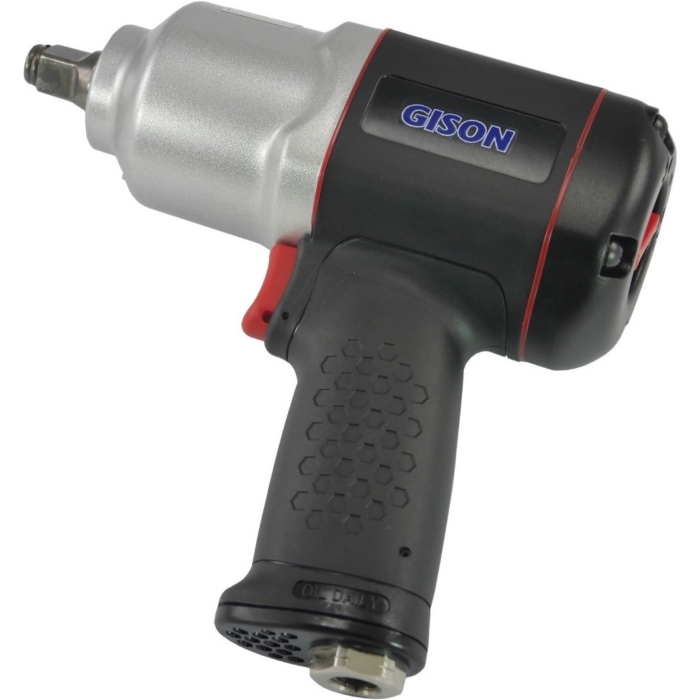

1/2" Composite Air Impact Wrench (820 ft.lb)

產品型號:GW-21J 原產地:台灣

詳細規格及用途描述

1/2" Composite Pneumatic Impact Wrenches (820 ft.lb), Air Impact Gun, Air Wrench

Specification:
•Handle Exhaust
•Mechanism : Twin Hammer
•Square Drive : 1/2"
•Max. Torque : 820 ft.lb (1,110 Nm)
•Free Speed : 8,500 RPM
•Net Weight : 2.1 kgs
•Length : 190 mm
•Air Cons. : 0.99 m3/min (35 scfm)
•Air Inlet : 1/4"
•Hose Size : 8 mm (I.D.)
•Air Pressure : 90 psi (6.3 kg/cm2)
•Sound Pressure : 90.9 dBA
•Sound Power : 101.9 dBA
•Vibration : 8.11 m/S2
•Packing: 10 pcs/1.6cu.ft/G.W.:24.5 kgs

Features:
•Light weight, enduring composite body and aluminum hammer case.
•3 different speed adjustment at Forward direction. 1 full speed at Reverse direction.
•362 degree swivel air inlet to pervent air hose twisted.
•Composite handle to provide best power-to-weight ratio, and prevent uncomfortable usage during the temperature change.
•Twin Hammer Impact mechansim to perform best torque output, and Special Hardened-Treatment to maintain best durability.
•Vane with Spring mounted to prevent dead-lock or power-less problem.

Applications:
•This Air Impact Wrench is suitable for all major automotive service work, and body shop, farm and light truck work.
