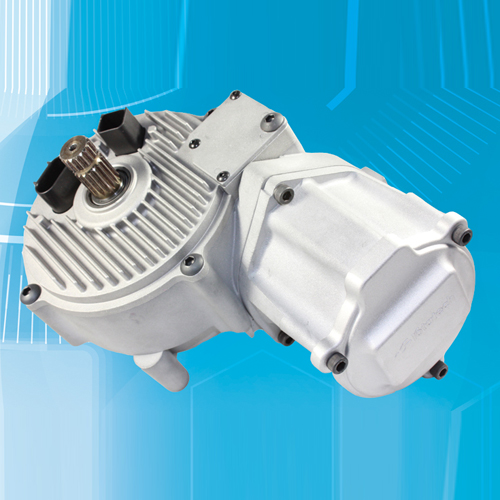

電子輔助轉向系統
Hot- 原產地:
- 台灣
詳細規格及用途描述
● Voltage:14VDC(9-16VDC)
● Max Battery Current : 30 Amps @ 30°C and 13.5VDC
● Max steering torque assisted : 55Nm
● Operating Temperature : - 40°C ~ + 85°C
● Environmental Rating : IP-67
● Weight : 6 Kg
● Dimension : 184 mm(H)*253 mm(L)*205mm(W)
● Easy installation and interfacing to get your steering system up and running.
● Height steering torque assisted and quick respone times.
● User friendly interface for the OEM development process.
● CAN Programming and Diagnostics .
● Low Cogging and Ripple Torque.
