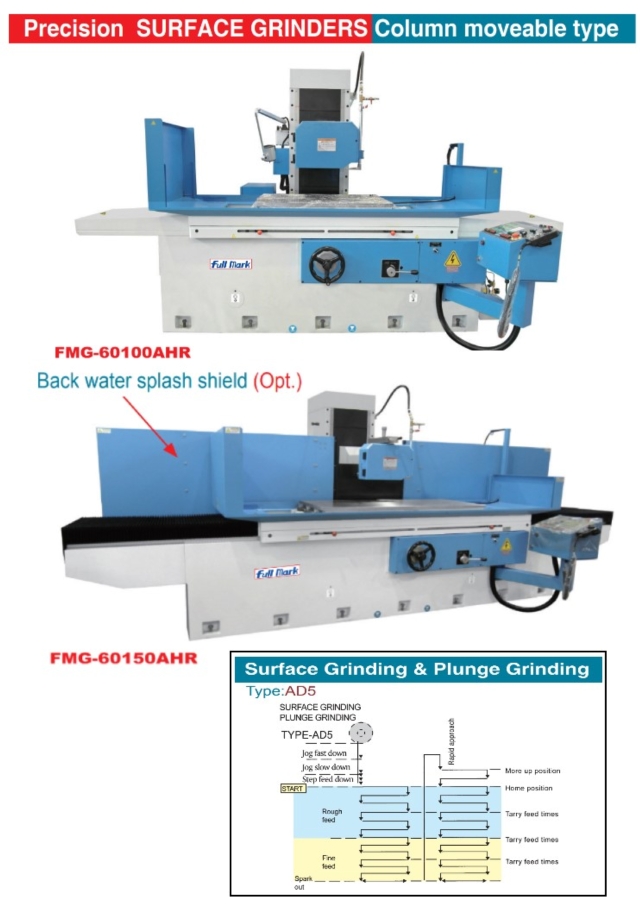

Precision Surface Grinder Column moveable type

Precision Surface Grinder Column moveable type

產品型號:
FMG-50100AHR~FMG-70100AHR
原產地:
台灣

詳細規格及用途描述

FEATURES :
◆ RUGGED STRUCTURE – The major parts are manufactured from high quality cast iron combined with an outstanding structural design. They are stress relieved to ensure maximum rigidity, stability and machining accuracy.
◆ TURCITE-B ON SLIDEWAYS – X, Z axis sideways on the H series are coated with Turcite-B for stable movement and long term accuracy.
◆ PRECISION SPINDLE DESIGN – The spindle runs in class P4 high precision angular contact bearing, assuring run-out accuracy in 2μm. The cartridge-type spindle is completely sealed and lubricated for long working lifetime, providing high accuracy grinding and long service life.
◆ AUTO DOWNFEED CONTROL – All models are available to equip with an auto downfeed control (AD5) for greatly increasing operational convenience.
◆ Double Wall Casting Construction – The structural parts, such as the Column and Table, etc., for models above FMG-50 series, feature double wall Casting construction, assuring maximum rigidity and stability especially when performing heavy grinding.

Precision Surface Grinder Column moveable type
