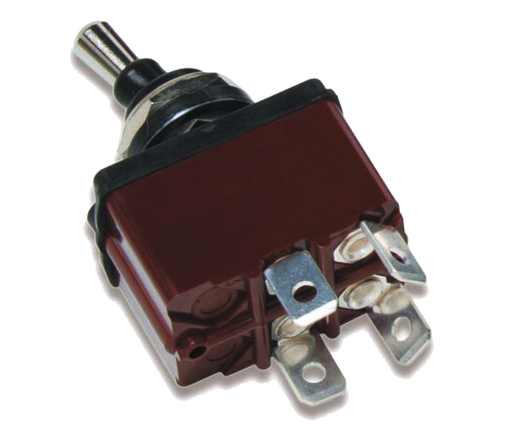

Toggle Switch

Toggle Switch

產品型號:
FE-A1772
原產地:
台灣

詳細規格及用途描述

Double Pole Single Throw Switch
2 Position Off-On
4 Blade terminals
Silver plated Bronze Contacts
Max. current/ Voltage rating with resistive load : 12Amps @ 28Volts DC – 6Amps @ 250Volts AC
Initial contact resistance : 10mΩ Max. 1Amps @ 2Volts DC
Insulation resistance : 1.000MΩ min. 500Volts DC
Waterproof
