高速精密車床
高速精密車床

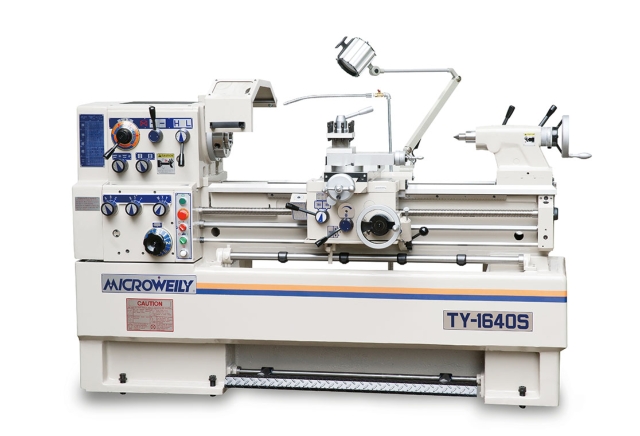

產品型號:TY-1640S 原產地:台灣

詳細規格及用途描述

16S/18TS/18 SERIES
TY-1630S/TY-1640S/TY-1660S
TY-1830TS/TY-1840TS/TY-1860TS
TY-1845S/TY-1868
-----------------------------------------------------------------

CAPACITY & DIMENSIONS
16S
MODEL TY-1630S,1640S,1660S
Swing
Over bed........................410mm(16")
Over cross slide..............240mm(9-7/16")
In gap diameter..............595mm(23-7/16")
Length of gap in front of
face plate.......................155mm
(6-1/8")(W/D1- 6),
.......................175mm
(6-7/8")(W/A1- 6)
Center height.................205mm(8-1/16")
Admits between.............762mm(30")/
1016mm(40")/
1530mm(60")
Bed
Width............................300mm(11-13/16")
Length..........................1646mm(64-13/16")/
1900mm(74-3/4")/
2415mm(95-1/16")
Height...........................310mm(12-7/32")
Motor for
Main spindle.................5HP 4P 3ph/
7-1/2HP
4P 3ph (Optional)
Coolant pump...............1/8HP,3ph

HEADSTOCK
Spindle
Bore..............................52mm(2-1/16")
Nose..............................D1- 6" ASA std.,
A1- 6" ISO std.
Taper in nose/sleeve......No.6/No.4
Speeds
Number.........................12
Range............................30~2000 r.p.m.
CARRIAGE & COMPOUND
Cross slide width/travel
............180mm(7-3/32")/
230mm(9")
Compound rest width/travel
..............110mm(4-11/32")/
120mm(4-3/4")
Leadscrew diameter & thread
.............32mm(1-1/4")/
6mm P or 4 T.P.I.

TAILSTOCK
Quill
Diameter/travel.............54mm(2-1/8")/
120mm(4-3/4")
Taper............................No.4 Morse

18TS
MODEL TY-1830TS,1840TS,1860TS
Swing
Over bed.......................458mm(18")
Over cross slide............288mm(11-5/16")
In gap diameter.............640mm(25-3/16")
Length of gap in front of
face plate......................155mm
(6-1/8")(W/D1- 6),
175mm
(6-7/8")(W/A1- 6)
Center
Height...........................230mm(9")
Admits between............762mm(30")/
1016mm(40")/
1530mm(60")
Bed
Width...........................300mm(11-13/16") Length .......1646mm(64-13/16")/ 1900mm(74-3/4")/
2415mm(95-1/16")
Height..........................310mm(12-7/32")
Motor for
Main spindle................5HP 4P 3ph/
7-1/2HP
4P 3ph (Optional)
Coolant pump..............1/8HP,3ph

HEADSTOCK
Spindle
Bore.............................60mm(2-3/8")
Nose............................D1- 6" ASA std.,
A1- 6" ISO std.
Taper in nose/sleeve....No.6/No.4
Speed number.............12
Range..........................30~2000 r.p.m.
CARRIAGE & COMPOUND
Cross slide width/travel
..............180mm(7-3/32")/
230mm(9")
Compound rest width/travel
..............125mm(4-15/16")/
135mm(5-5/16")
Leadscrew diameter &
thread..........................32mm(1-1/4")/
6mm P or 4 T.P.I.
TAILSTOCK
Quill
Diameter/travel............54mm(2-1/8")/
120mm(4-3/4")
Taper..........................No.4 Morse

18
MODEL TY-1845S,1868
Swing
Over bed....................458mm(18")
Over cross slide.........288mm(11-5/16")
In gap diameter..........640mm(25-3/16")
Length of gap in front of
face plate...................180mm
(7-1/16")(W/D1- 6),
195mm
(7-11/16")(W/A1- 6)
Center
Height........................230mm(9")
Admits between.........1145mm(45")/
.........1730mm(68")
Bed
Width........................300mm(11-13/16")
Length.......................2095mm(82-1/2")/
2680mm(105-1/2")
Height.......................340mm(13-3/8")
Motor for
Main spindle..............7-1/2HP 4P 3ph
Coolant pump............1/8HP,3ph
HEADSTOCK
Spindle
Bore...........................58mm(2-1/4")
Nose...........................D1- 6" ASA std.,
A1- 6" ISO std.
Taper in nose/sleeve
...............No.6/No.4
Speeds number...........12
Range.........................30~2000 r.p.m.
CARRIAGE & COMPOUND
Cross slide width/travel
..........190mm(7-1/2")/
265mm(10-7/16")
Compound rest width/travel
..........125mm(4-15/16")/
135mm(5-5/16")
Leadscrew diameter & thread
..........35mm(1-3/8")/
6mm P or 4 T.P.I.
TAILSTOCK
Quill
Diameter/travel...........60mm(2-3/8")/
150mm(5-7/8")
Taper..........................No.4 Morse
