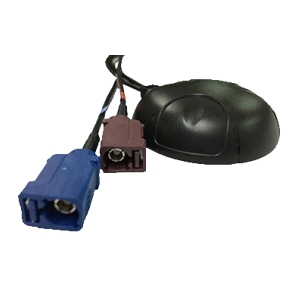

Antenna with Fakra Connection
Hot- 產品型號:
- C-ATN-FK-001
- 原產地:
- 台灣
詳細規格及用途描述
Specification
-Frequency: GSM: 824 ~ 960 / 1710 ~ 2170MHz, GPS+ Glonass: 1575 ~ 1610 MHz
-Amplifier Specification: Voltage: 3.0V, Current: 10 mA, LNA Gain: 28dB, Output VSWR: 1.5 dB, Noise Figure: 1.5dB
-Operating Temperature: -40 to +85°C
-Connector: GSM-Fakra D type, GPS-Fakra C type
-Cable: RG174
-IP Rating: IP68
