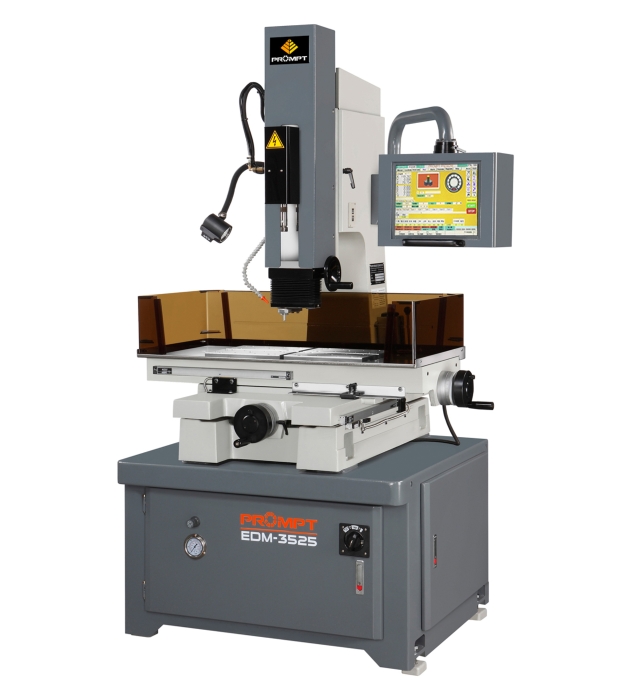

SUPER DRILL EDM
SUPER DRILL EDM

產品型號:EDM-3525

詳細規格及用途描述

Model EDM-3020 /CNC
Work table size 400 X 260 mm
X/Y/Z Travel 300 X 200 X 345 mm
W Travel ------
X/Y/Z DRO Resolution 0.005 mm
Electrode Plate To Work Table 140 mm
Guide Between Worktable 67-200 mm
Max Electrdoe Weight 150 kg
Machine Weight 500 kg
Machine Dimension (L*W*H) 1400 X 1655 X 2054 mm
Max. Machining Current 30 A
Max. Power consumption 4 KVA
Accessories (★:Standard accessories)
Digital read out 3 Axes
Display 3 Axes
Depth setting ★
Electrode holder with handle (mm) 0.2 - 3.0
Rubber chuck 10 Pcs
Filter / 2 PCS ★
Tool box with tools / 1 SET ★
Ceramic guide 1.0 mm / 1 PC ★
Electrode brass tube 1.0 x 400 mm / 10 PCS ★
Working lamp / 1 SET ★
Leveling bolts and pads / 1 SET ★
Philips & slotted screwdrivers / 1 SET ★
Bucket / 2PCS ★
Hexagon wrench / 1 SET ★
Motor and flush stand / 1 SET ★
* The above specifications subject to change without prior notice.
