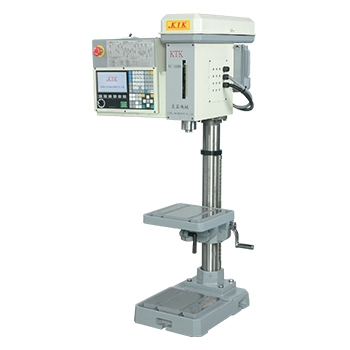

NC Drilling Machine

NC Drilling Machine

產品型號:
NC-1600A

詳細規格及用途描述

ModelNC-1600ANC-1600NCL-16NCL-25
Max. Drilling Capacity13mm20mm
Spindle TaperMT2MT3
Spindle Vertical Stroke120mm300mm
Spindle Speed 4-speed
550-880-1340-1910 rpm
3-speed
710-1450-2860 rpm
3-speed
510-1220.2000 rpm
Spindle Speed
(H)
(L)
8-speed
550-880-1340-1910 rpm
225-440-670-955 rpm
8-speed
550-880-1340-1910 rpm
275-440-670-955 rpm
6-speed
710-1450-2860 rpm
355-725-1430 rpm
6-speed
510-1220.2000 rpm
255-610-1000 rpm
Spindle to Column180mm180mm250mm
Column Diameter80mm130x140x800mm180x200x950mm
Metal Working Table320mm/300x300mm630x800x750mm600x800x750mm840x980x750mm
Cooling Equipment-0.125kw
Spindle to Table Distance 200-570mm200-550mm320-520mm250-550mm
Motor Poewr0,75kw1.5kw
(Option)  2-Speed0.375 / 0.75kw0.75 / 1.5kw
Overall Height1150mm1850mm1750mm1950mm
Weight120kgs230kgs220kgs350kgs
