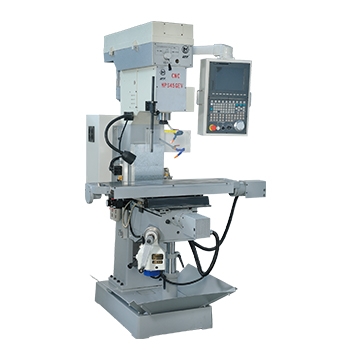

CNC Drilling / Milling Machine

CNC Drilling / Milling Machine

產品型號:
CNC-MPS45GEV

詳細規格及用途描述

ModelCNC-MPS45GCNC-MPS45GEV
Max. Drilling Capacity40mm40mm
Max. Milling Capacity--
Spindle TaperMT4MT4
Spindle Stroke120mm120mm
Quill Feed--
Spindle Speed
(H)
(L)
2-Speed Gear Box
8-Speed
325-582-965-1650rpm
54-97-160-276rpm
240-1800rpm
170-900rpm
Column DiameterSquareSquare
Spindle to Column325mm325mm
Table Diameter
(TG)
(TM)
(TC)
260x890mm260x890mm
Table Travel
(TC)
X-axis:440mm
Y-axis:200mm
Z-axis:480mm
X-axis:440mm
Y-axis:200mm
Z-axis:480mm
Spindle to Table
(TG/TM)
(TC)
Z-axis:170-650mm Z-axis:170-650mm
Base Diameter560x895mm560x895mm
Motor(2-speed)--
Coolant2.25kw2.25kw
LED Light--
Overall Height2070mm2070mm
Weight850kgs850kgs
