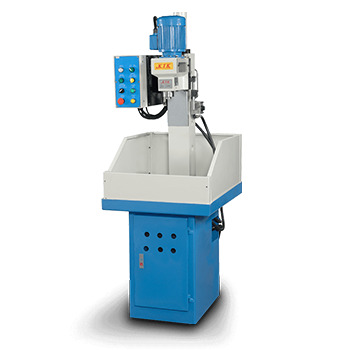

Linear Guide Hydraulic Drilling Machine
- 產品型號:
- HL-16
詳細規格及用途描述
| Model | HL-16 | HL-25 |
|---|---|---|
| Max.Drilling Capacity in steel | Ø16mm | Ø25mm |
| Spindle Taper | MT2 | MT3 |
| Spindle Travel | 200mm | 300mm |
| Head Vertical Travel | 200mm | 300mm |
| No. Of Spindle Speed | 3 | 3 |
| Spindle Speed | 60HZ 710/1450/2860 50HZ 590/1200/2380 | 60HZ 510/1220/2000 50HZ 425/1010/1660 |
| Square Column Diameter | 130x140x800mm | 180x200x950mm |
| Max. Distance Spindle To Table | 520mm | 550mm |
| Min. Distance Spindle To Table | 320mm | 250mm |
| Distance Spindle To Cloumn | 185mm | 245mm |
| Surface Of Table | 300x300mm | 300x450mm |
| Motor HP | 1HP | 2HP |
| Overall Dimension LxWxH | 800x630x720mm | 980x850x750mm |
