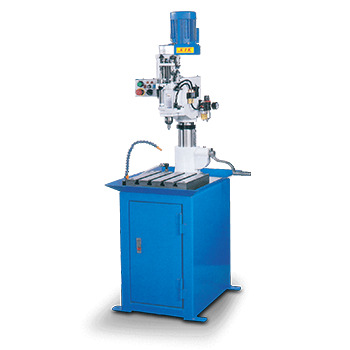

Pneumatic Peck Feed Drilling Machine

Pneumatic Peck Feed Drilling Machine

產品型號:
P-30-60

詳細規格及用途描述

ModelP-30-60AP-30-60P-50-100AP-50-100P-60-150
Max. Drilling Capacity6 mm6 mm10 mm10 mm16 mm
Spindle TaperJT2JT2 / ER16JT6JT6 / ER20MT2 / ER25
Spindle Travel60mm60 mm100 mm100 mm150 mm
Stabilizer Travel30mm25 mm60 mm50 mm50 mm
Spindle Speed3000, 4000, 50002500, 3400, 4200 (50Hz)
3000, 4000, 5000(60Hz)
1000, 2000, 3000830, 1670, 2500 (50Hz)
1000, 2000, 3000(60Hz)
830, 1250, 1670 (50Hz)
1000, 1500, 2000(60Hz)
Number of Speed33333
Swing360 mm360 mm360 mm360 mm460 mm
Table Size350 x 550 mm350 x 550 mm330 x 510 mm450 x 600 mm600 x 800 mm
Column Diameter80 mm80 mm80 mm80 mm102 mm
Distance From Spindle To Table100-400 mm100-400 mm400 mm100-400 mm100-700 mm
Motor HP1/2 HP1/2 HP1 HP1 HP2 HP
Pneumatic Power Kg/cm²5 kg/cm²5-7 Kg/cm²5 kg/cm²5-7 Kg/cm²5-7 Kg/cm²
Overall Height1600 mm1600 mm1350 mm1600 mm1800 mm
Weight210 kg230 kg100 kg230 kg350 kg
