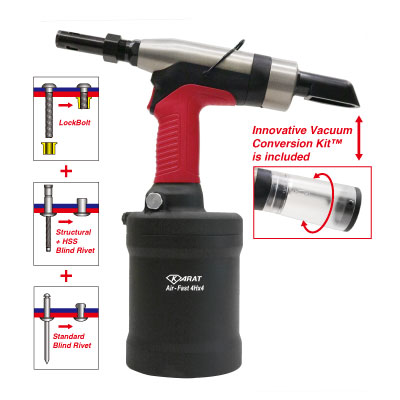

KARAT Air-Fast 4HX4 Industrial Heavy-Duty Pneumatic-Hydraulic Lock Bolt Tool

KARAT Air-Fast 4HX4 Industrial Heavy-Duty Pneumatic-Hydraulic Lock Bolt Tool

產品型號:
AF-4HX4
原產地:
台灣

詳細規格及用途描述

KARAT Air-Fast 4Hx4 Industrial Heavy-Duty Innovative 2-IN-1 Pneumatic Installation Tool

● Super Traction Force: 27,5 kN (6,182 Lbf) at 6.2 bar (90 psi) air pressure
● Long Stroke 20 mm (0.788˝)

● Very ideal for setting 3/16”, 1/4” (4.8 mm, 6.4 mm) *HUCK *Magna-Grip & *C6L, and 3/8” (10 mm) *HUCK *Hucktainer Lockbolts by installing the corresponding Lockbolt Nose Assemblies

● KARAT KGNA-6 Nose Assembly for setting *Magna-Grip 3/16” (4.8 mm) Lockbolt
● KARAT KGNA-8 Nose Assembly for setting *Magna-Grip 1/4” (6.4 mm) Lockbolt
NOTE: *HUCK, *Magna-Grip, *C6L, and *Hucktainer are the registered trademarks of HOWMET Aerospace

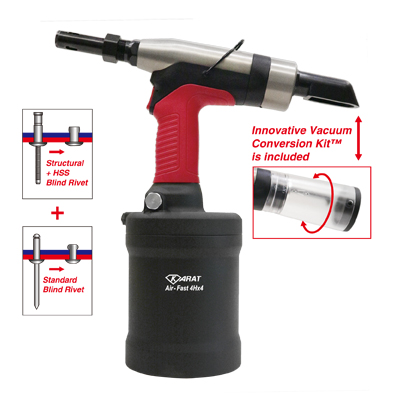

● The First Design in the World: KARAT Air-Fast 4Hx4 can be quickly converted into Air Rivet Tool with Built-in Vacuum System simply by installing the innovative Vacuum Conversion Kit, and KUNA-64 or KUNA-80 Universal Nose Assembly or specific *HUCK Nose Assemblies

● KARAT KUNA-64 Universal Nose Assembly for setting various 4.0 ~ 6.4 mm (5/32” ~ 1/4”) HSS (High-Strength Structural) & Structural Blind Rivets

● KARAT KUNA-80 Universal Nose Assembly for setting various 4.8 ~ 8.0 mm (3/16” ~ 5/16”) HSS (High-Strength Structural) & Structural Blind Rivets
NOTE: HSS (High-Strength Structural) Blind Rivets are widely used in the German and European Cars

● Innovative Quick-Change Type Jaw Case Assembly with Durable 3-PC Type Jaws
● Ergonomically designed with 2-Tone Plastic Handle covered by Soft Grip
● Patented Rivet Size Hole Gauge Design, and Nosepieces Storage Design
● 360° Swivel Air Fitting with ON/OFF Slide Switch

● Robust Forged Aluminum Alloy Oil Cylinder with Oil Refill Hole and Titanium Color finish, and High Strength Aluminum Alloy Air Cylinder

● Mirror finish on the Inner Walls of Oil Cylinder and Air Cylinder, and Hard Chrome Plating and Mirror finish on the Oil Piston Rod

● Shock-Reducer Design, Noise Silencer Design, Air Safety Valve Design, and Twin Air Inlets Design
