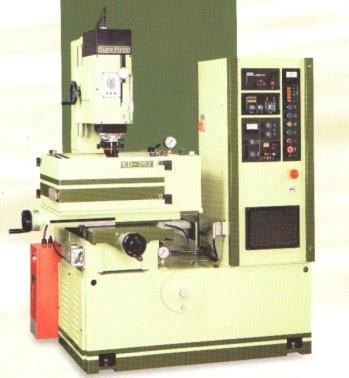

Electric Discharge Machine

Electric Discharge Machine

原產地:
台灣

詳細規格及用途描述

Model/Item No.:AMED-252

Origin : Taiwan



Product Specifications/Features :

1. E.D.M. Electric Discharge Machine
2. Machine specification
. Work table area (L x W): 600 x 300 mm
. Travel (X.Y Axes): 300 x 200 mm
. Quill stroke: 150 mm
. Type of servo motor: DC servo motor
. Distance between working table and
electrode hojder plate: 150-500 mm
. Max.workpiece dimensions (W x D x H): 600 x 300 x 240 mm
3. Accurcy and power supplies
. Max. working speed + Cu:St: 2.01 g/min
. Max. working speed + Gr:St: 2.69 g/min
. Best surface roughness: RA0.3-0.5 RMS14-21
RA0. 2-0.3 RMS8-14
. Min. electrode wear rate: 0.2 %
. Max. process current: 30 (50, 70) A
. Max. power consumption: 4 (6, 9) KVA
. Power supply dimensions: 540 x 470 x 1220 mm
4. Dielectric fluid tank
. Tank dimensions: 1400 x 700 x 500 mm
. Pump flow: 80
. Pump motor: 0.375 kw
. Volume of dielectric fluid: 330 (87)




Primary Competitive Advantages:

. Well and High Quality Control
. ODM Accepted
. OEM Accepted
