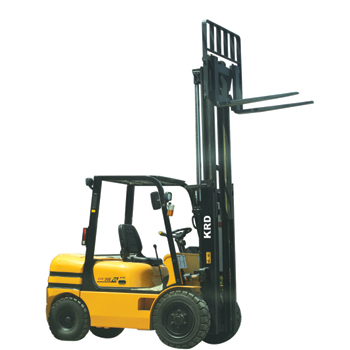

Forklift Truck

Forklift Truck

產品型號:
KRD15

詳細規格及用途描述

Item Model:KRD15
Rated capacity(㎏): 1500
Load center(㎜): 500
Max. lifting height(㎜ H): 3000
Fork free lift height(㎜ H5 ): 110
Max. lifting speed (loaded)(㎜/s): 480
Tilt angle (fwd / bwd): 6°/ 12°
Max. travel speed (Ⅰ/Ⅱ)(km/h): 15
Max. gradeability (loaded)(%): 20
Turning radius(㎜ R): 1950
Dimensions Length (㎜ L): 3173
Width(㎜ W): 1080
Mast lowered height(㎜ H1 ): 2015
Mast extended height(㎜ H2 ): 3920
Overhead guard height(㎜ H3 ): 2015
Ground clearance(㎜ H4 ): 100
Fork size (length×width×thick)(㎜ L2 ): 925×100×35
Fork spread(㎜ W3 ): 200~916
Wheel base(㎜ L1 ): 1400
Track Front(㎜ W1 ): 890
Rear(㎜ W2 ): 870
Fork overhang(㎜ L3 ): 420
Min. right angle aisle width(㎜ L4 ): 1960
Min. right angle stacking aisle width(㎜ L5 ): 3495
Service weight(㎏): 2550
Tyres Front: 6.50-10-10PR
Rear: 5.00-8-8PR
Engine Model: 485BPG
Rated power(kw/r/min): 30/2600
Max. torque(N.m/r/min): 131/1820
Air displacement(L): 2.27
