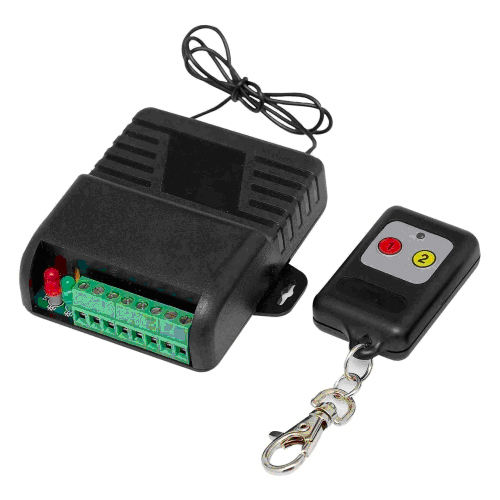

車庫門遙控產品 - 遙控器（車庫、汽車防盜）,車庫用遙控器,遙控鎖
- 產品型號:
- SRC019E
- 原產地:
- 台灣
詳細規格及用途描述
雙頻道發射器:
頻率: 315MHz / 433.92MHz (Option)
編碼型式: 固定碼
兩個乾接點 (NO/NC/common) outputs
操作頻率: 315MHz / 433.92MHz (Option)
操作電壓: 11VDC to 24VDC (Option)
操作距離: up to 650 feet (open air)
操作溫度: -20 to 72 degrees Celsius (-4 to 162 degrees Fahrenheit)
電流消耗: 8mA at 12VDC (standby), 45mA per channel at 12VDC (activated)
敏感度: -87dBm (typical)
資料格式: PWM
RF 編碼: 18 quintillion (SK-917T2A), 68 billion (SK-919TD2A)
RF 頻道: 2
可儲存編碼數量: 15 per channel, 30 per receiver
接收器輸出: two form C dry relay contacts (NO/NC/common); 10A at 24VDC
接收器輸出模式: programmable 4-second momentary (default), 1-second momentary, toggle or latch
