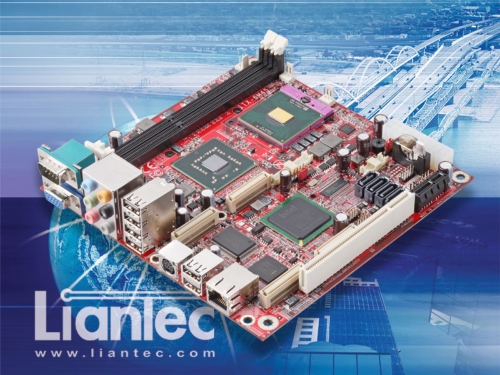

Liantec ITX-6M45 Mini-ITX Intel GM45 Core2 Duo / Quad Mobile Express EmBoard
- 產品型號:
- ITX-6M45
- 原產地:
- 台灣
詳細規格及用途描述
_ Intel Embedded GM45 Express Platform
_ Intel "Centrino2" Computing Platform
with Intel 45nm Penryn Processor
_ Supports Intel Core2 Duo/Quad Mobile CPU
with 1066 / 800 / 667 MT/s FSB
_ Supports 1/2/4/8 GB DDR3 SDRAM DIMM
_ Intel GM45 GMCH Built-in GMA X4500
Graphics Core with DirectX 10 / OpenGL2.0
_ Single / Dual 18-/24-bit LVDS Interface
_ 7.1-CH Intel Azalia High Definition Audio
_ Gbit Ethernet, 4 SATA-II 3 Gbit/s Interfaces
_ PCI and PCI Express Extension Slot
_ Optional Intel SDVO DVI / LVDS Module
_ Tiny-Bus® Modular Extension Solution
with x16 PCIe Graphics, Dual Intel SDVO,
Four x1 / One x4 PCIe and 2 PCI Interfaces
_ Compact Size @ 170 x 170 mm (L x W)
