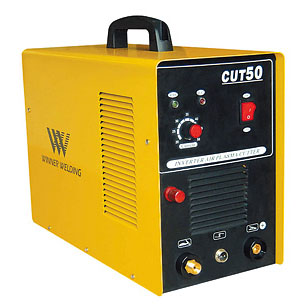

Inverter ARC Plasma Cutting Machine

Inverter ARC Plasma Cutting Machine

產品型號:
CUT-50
原產地:
台灣

詳細規格及用途描述

Function and feature
* High frequency inverter, high duty cycle, low energy consumption.
* Compact, light weight and easy to carry, suitable for outdoor movable operation.
* High cutting speed, norrow cutting gap, smooth cutting surface, less distortion.
* Digital electric current disply adjustable and exact cutting current.
* Protective electric circuit built-in to prevent over heat, over current, over voltage or under voltage etc.

Features:
* High cutting power, up to 15mm
* With ARC maintenance device, applicable to automatic cutting equipment
* Touch and ARC initiation
* Stable ARC, long working time

Main technical parameters :
* Input Voltage/Frequency: 220V±10% 1Ph 50/60HZ
* Rate input power capacity (KVA): 4.8
* Output current range (A): 20~50
* Rate output voltage (V): 96
* O.C.V (V): 240
* Duty cycle (%): 60
* Efficency (%): 85
* Weight (kg): 12
* Overall dimension (mm): 480x205x357
* Exhaust (m/min): 4.5
* Pilot arc: yes
* Max.cutting thickness (mm): 15.0
