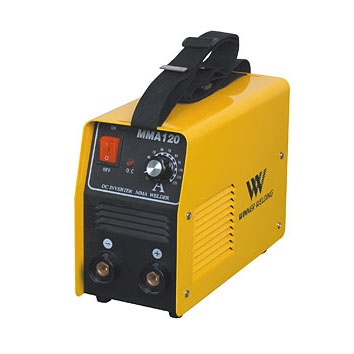

DC Inverter ARC Welding Machine

DC Inverter ARC Welding Machine

產品型號:
MMA-120
原產地:
台灣

詳細規格及用途描述

Function and feature
* Light weight, high quality, stable arc.
* Suitable for welding of low carbon steel, cast iron, low alloy steel and stainless steel.
* Adapt to SMAW and simplified tig welding, the arc-500 and arc-600 is suitable for arc air gouging.
* Arc power and anti freeze are standard facilities.
* Remote control box can be provided (optional).

Features:
* High quality
* Stable MMA
* Molten bath is easy to control
* No-load voltage is higher
* Wide usage capability
* Suitable for jobs at high-altitude and outdoor use
* Lightweight
* Simple installation and operation

Main technical parameters:
* Input Voltage/Frequency: 220V±10% 1Ph 50/60HZ
* Rate input power capacity (KVA): 3.4
* Output current range (A): 10~120
* Rate output voltage (V): 25.6
* O.C.V (V): 56
* Duty cycle (%): 100
* Efficency (%): 85
* Weight(kg): 3.6
* Overall dimension (mm): 270x112x185
* No load loss (W): 20
* Diameter of rod (mm): 2~2.6
