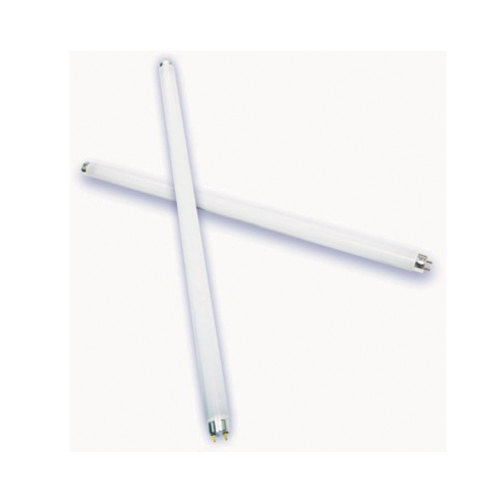

150cm Deluxe LED T8 Tube
150cm Deluxe LED T8 Tube

原產地:台灣

詳細規格及用途描述

* Length: 33cm, 58cm, 60cm, 90cm, 120cm or 150cm

Product Features:
*Energy Cost Saving: T8 LED tube is a designed with G13 connector. After removing growing start or electrical ballast, the T8 LED tube can replaced existing T8 fluorescent tube. But it saves 40% energy consumption with same illumination.
*Maintenance Cost Saving: T8 LED tube provides 50,000 hours of operation life. It is five times life of standard fluorescent tube. User can save more than 80% maintenance cost in long operation applications.
*Comfortable Vision: The T8 LED provides saturated color rendering which let you see the true colors. Besides typical LED light spots were removed by high efficiency diffusion technology. It gives human most comfortable vision.
*Quality Product: The T8 LED tube is an UL certified product (pending to 2009 Q2). And it is also an Energy Star compliant product.
*Environment Friendly: T8 LED tube is compliant to RoHS & REACH. With energy saving and long life features, to minimum pollution on our only planet is our commitment.

Product Information:
*Parts Number: 95.90200.321 / 95.90200.371 / 95.90200.381

General Characteristics:
*Lamp type: Linear Tube
*Bulb: T8
*Base: Medium Bi-Pin (G13)
*Bulb Material: Diffusion PC
*Intensity Degradation 90% @ 25℃: 10,000 hrs
*Intensity Degradation 70% @ 25℃: 50,000 hrs
*Operation Temperature: -20-65℃

Photometric Characteristics:
*Total Flux: 1500lm / 1650lm / 1650lm
*Nominal Optical Efficiency: 60lm/W
*Color Temperature: 3000K / 5700K / 6500K
*Color Rendering Index (CRI): 85
*Viewing Angle: 120°

Electrical Characteristics:
*Input Voltage: 90-264VAC / 50-60Hz
*Power consumption: 30W
*Power Efficiency: 85%
*Insulation: 600V

Mechanical Characteristics:
*Overall Length: 1513.6mm
*Tube Length (Without Pin): 1500.0mm
*Tube Diameter: 26.0mm
*Tube Pin Distance: 12.7mm
*Tube PIN Diameter: 2.3mm
*Packing Quantity:10pcs
