SMD LEDs
- 產品型號:
- YJ-S5050RGB
- 原產地:
- 中國
- 顏色:
- RGB
詳細規格及用途描述

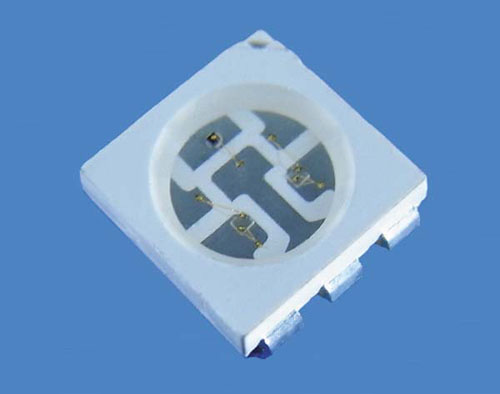

SMD LED with 120° Beam Angle, Measures 5.0 x 5.0 x 1.5mm
* Three chips in it
* Chips can be controlled seperately
* Available in per piece, tape or reel
* Beam angle: 120 degrees
* Various emitting colors are available
* Peak wavelength: Red: 620 to 635Nm / Blue: 460 to 470Nm / Green: 515 to 530Nm
* Luminous intensity: Red: 700 to 1,200mcd / Blue: 400 to 600mcd / Green: 2,000 to 3,000mcd / White: 2,500 to 3,500mcd
* Forward voltage: Red: 1.8 to 2.2V / Blue: 3.0 to 3.6V / Green: 3.0 to 3.6V / White: 3.0 to 3.6V
* Dimensions: 5.0 x 5.0 x 1.5mm
