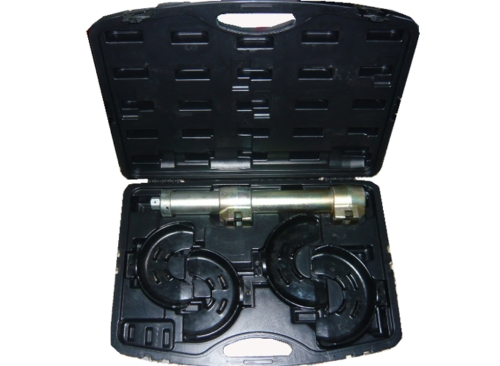

E-Z mount Coil Spring Compressor
E-Z mount Coil Spring Compressor

產品型號:CSC-2600 原產地:台灣

詳細規格及用途描述

Material: Body: Special Steel
Jaw:S45C W/Powder coating
Maximum Load:2600 kg
Cylindrical springs:Ø 80-350 mm
Conical springs:Ø 80-350 mm
Compressor body:7.5kg
2 Jaws:Ø 80 – 170 mm
2 Jaws:Ø 120-195 mm
Bolts:Ø9x50mmL
Certificate:VPA -GS Pending
Weight:17.3kgs
Suitable for all macPherson struts.
Advantage:Patent Self-locking pin feature and mount without any tool required.
Improved load absorption onto the hardened tool body.Forged and tempered tensioning jaws W/ plastic coating to avoid damage of the springs.Packing: Box 1set/18/19/1.5’
