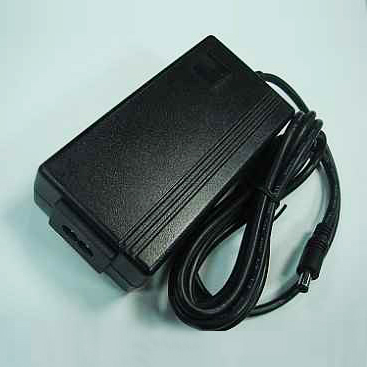

外置型60W發光二極體LED驅動器

OUTPUT
* Output rating: See Rating Charts
* Line regulation: 1%
* Load regulation: 5%
* Ripple & noise Vp-p: 1% (20MHz bandwidth)
* Hold up time: 10mS Min. at full load 115Vac input
* Output power: 60W max.
PROTECTION:
* Over voltage protection: Auto recovery
* Short circuit protection: Built-in
* Over Current protection: two steps controlled current source
FEATURES
* Plastic case
* PWM dimming option
* MTBF 100K min. at 25C ambient
* Constant current status
ENVIRONMENT
* Operating: full load -20-50℃ convection
* Non-operating: -20-85℃
* Shock: MIL-STD-610C 516 Part V
* Vibration: 10-500 Hz. 16 mins/cycle/axis
DIMENSION: 120x62x35mm
INPUT: IEC C8 inlet
OUPUT: 1.2M AWG18 UL cable with 2.5/5.5 plug

Model No. : LDP060-181
* Output: 9~18V
* Io max.: 3.33A
Model No. : LDP060-241
* Output: 12~24V
* Io max.: 2.5A
Model No. : LDP060-361
* Output: 18~36V
* Io max.: 1.67A
Model No. : LDP060-481
* Output: 24~48V
* Io max.: 1.25A
Model No. : LDP060-182
* Output: 9~18V
* Io max.: 3.33A
Model No. : LDP060-242
* Output: 12~24V
* Io max.: 2.5A
Model No. : LDP060-362
* Output: 18~36V
* Io max.: 1.67A
Model No. : LDP060-482
* Output: 24~48V
* Io max.: 1.25A

EMI Meet
* Meet FCC part 15 Class B
* Meet CISPR 22 Class B
* Meet CE EN 55015, EN61547, EN61000-3
Safety Meet
* UL: UL1310 class 2
* cUL: CAN/CSA C22.2 NO. 223-M91
* CE: EN61347-1, EN61347-2-13
