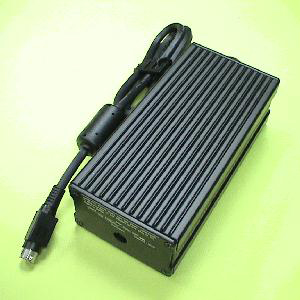

BSD-90-112 12V / 90W Car Adapter
- 產品型號:
- BSD-90
詳細規格及用途描述
Input
* Input voltage: 10.8-32Vdc (Wide range)
* Input Frequency: DC
* Input current: 9.5A
* Efficiency: >80% at Full Load
Output
* Output Rating: See Rating Charts
* Output Voltage: +12VDC
* Output current: 7.5A
* Line Regulation: 1%
* Load Regulation: 5%
* Ripple & Noise: 1% P-P max
Protection
* Over Voltage Protection
* Short circuit Protection
* Over current Protection
* Input over / undervoltage protection
Input Plug: Cigarette plug cable
Output Plug: As required
Dimension: 152 X 73 X 50mm
More specifications (pdf)
