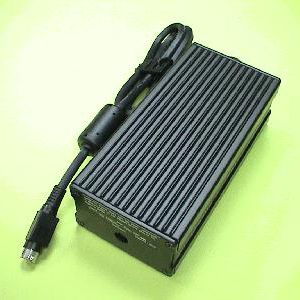

BSD-120-112 12V / 110W car adapter
BSD-120-112 12V / 110W car adapter

產品型號:BSD-120

詳細規格及用途描述

Input
* Input voltage: 12-32Vdc (Wide range)
* Input Frequency: DC
* Input current: 12A
* Efficiency: >80% at Full Load

Output
* Output Rating: 110W
* Output Voltage: +12VDC(other outputs see detail spec.)
* Output current: 9.16A
* Line Regulation: 1%
* Load Regulation: 5%
* Ripple & Noise: 1% P-P max

Protection
* Over Voltage Protection
* Short circuit Protection
* Over current Protection
* Input over / undervoltage protection

Input Plug: Cigarette plug cable
Output Plug: As required

Dimension: 152 X 73 X 50mm

BSD-120-112 12V / 110W car adapter
