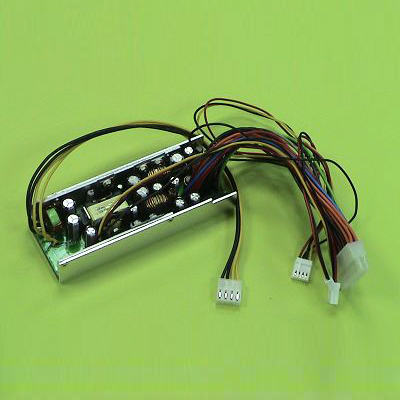

EPD-135 mini-ATX / ITX power supply
- 產品型號:
- EPD-135
詳細規格及用途描述
Input
* Input voltage: 10-32V
* Input power: 80W
* Efficiency: > 75% at Full Load
Output
* Output Power: 70W max. at convection cooling
* Output Voltage: 3.3V / 5V / 12V / -12V / 5VSB
* Output current: 4A / 5A / 2A / 0.2A / 2A
* Line Regulation: 1%
* Load Regulation: 5%
* Ripple & Noise: 2% for 5VSB / -12V, 1% for others
Protection
* Over Voltage Protection: 110% for 3.3V/5V
* Short circuit Protection: 3.3V & 5V
* Over current Protection: 3.3V & 5V
Dimension: 135 x 52 x 28mm
