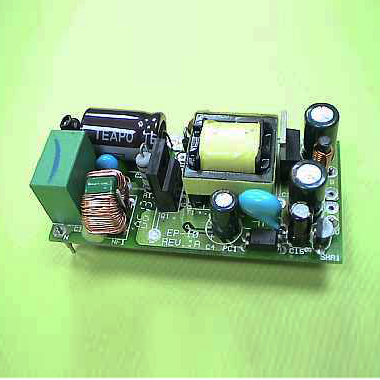

EP-10 10W power supply
- 產品型號:
- EP-10
詳細規格及用途描述
Input
* Input voltage: 90 to 264Vac (Wide range)
* Input frequency: 47Hz ~ 63Hz
* Input current: 0.3A max at 90Vac
* Input inrush current: 50A max. at cold start
* Efficiency: >70% at Full Load
* Protection: 2A fuse on board
Output
* Output rating: see detail spec.
* Line regulation: 1%
* Load regulation: 5%
* Ripple & noise: 1% P-P max
* Hold-up time: >20mS at full load, 120Vac
* Trainsient response: 10% at 50% load change
* Output power: 10W max.
Protection: Auto-recovery
* Over voltage protection
* Short circuit protection
* Over power protection
Dimension: 70 X 35 X 20
More specifications (pdf)
