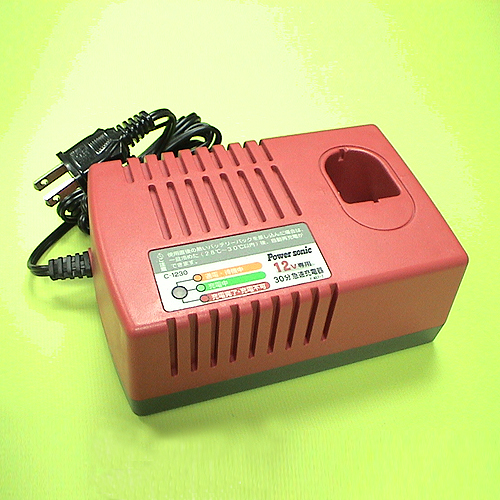

SH-50 10 Cells Battery Charger
- 產品型號:
- SH-50
詳細規格及用途描述
Input
* Input voltage: 90 to 132Vac
* Input Frequency: 47Hz ~ 63Hz
* Input VA: 120VA max.
* Inrush current: 25A, cold start, 25℃.
* Efficiency: >70% at fast charge
Output
* Output Volatge: +6.0V ~ +18VDC
* Output current: 3+-0.3A
* Line Regulation: 1%
* Load Regulation: 5%
Protection
* Over Voltage Protection
* Short circuit Protection
* Over current Protection
Indication: orange / pending, green / charge, red / complete
Charge Time: 10 cells 1.3AH 30 minutes
Dimension: 151 X 98 X 62mm
