Product Information - Worm Drive Hose Clamp

Click for a larger picture

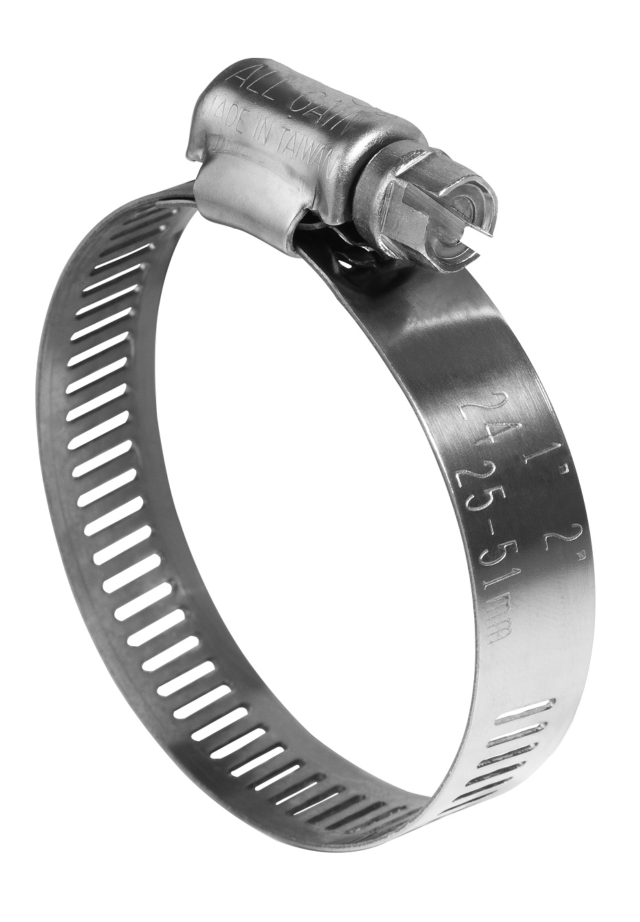

Worm Drive Hose Clamp

Product Description
Product Name:	Worm Drive Hose Clamp
Model:	n/a

> Detail Specifications / Descriptions

Worm Drive Hose Clamps
	Diameter Range						Packing / CTN
No.	Inch	mm	Galvanized	AISI 430	AISI 304	pcs	G.W.	cu.ft.
No.	Min. to Max.	Min. to Max.	Galvanized	AISI 430	AISI 304	pcs	G.W.	cu.ft.
Mini clamp with 8mm wide band
4	7/32"-5/8"	6-16	0.6	0.6	0.5	2000	14.7	0.85
6	7/16"-3/4"	11-20	0.6	0.6	0.5	2000	14.7	0.85
8	1/2"-7/8"	13-23	0.6	0.6	0.5	2000	14.7	0.85
10	1/2"-1	13-25	0.6	0.6	0.5	2000	14.7	0.85
Regular clamp with 12.7mm or 14.2mm band
4	3/8"-25/32"	10-20	0.7	0.65	0.6	1,000	18.7	1.3
6	3/8"-7/8"	10-22	0.7	0.65	0.6	1,000	19.0	1.3
8	7/16"-1"	11-25	0.7	0.65	0.6	1,000	19.3	1.3
10	9/16"-1 1/16"	14-27	0.7	0.65	0.6	1,000	19.5	1.3
12	1 1/16"-1 1/4"	18-32	0.7	0.65	0.6	1,000	20	1.3
16	1 3/16"-1 1/2"	21-38	0.7	0.65	0.6	1,000	21.1	1.7
20	1 3/16"-1 3/4"	21-44	0.7	0.65	0.6	1,000	23.2	2.1
24	1 1/16"-2"	27-51	0.7	0.65	0.6	1,000	24.3	2.3
28	1 5/16"-2" 1/4"	33-57	0.7	0.65	0.6	1,000	27.4	2.8
32	1 9/16"-2" 1/2"	40-63	0.7	0.65	0.6	1,000	29.6	3.2
36	1 13/16"-2" 3/4"	46-70	0.7	0.65	0.6	1,000	31.7	3.8
40	2 1/16"-3"	52-76	0.7	0.65	0.6	500	17.2	2.3
44	2 5/16"-3 1/4"	59-82	0.7	0.65	0.6	500	18.3	2.5
48	2 9/16"-3 1/2"	65-89	0.7	0.65	0.6	500	18.4	2.8
52	2 13/16"-3 3/4"	72-95	0.7	0.65	0.6	500	19.5	3.0
56	3 1/16"-4"	78-101	0.7	0.65	0.6	500	19.6	3.2
60	3 5/16"-4 1/4"	84-108	0.7	0.65	0.6	500	21.4	3.2
64	3 9/16"-4 1/2"	91-114	0.7	0.65	0.6	500	21.5	3.2
72	4 1/8"-5"	105-127	0.7	0.65	0.6	250	12.0	3.2
80	4 5/8"-5 1/2"	118-140	0.7	0.65	0.6	250	13.0	3.9
88	5 1/8"-6"	130-152	0.7	0.65	0.6	250	14.0	4.5
96	5 5/8"-6 1/2"	143-165	0.7	0.65	0.6	250	15.0	4.5
104	6 1/8"-7"	155-178	0.7	0.65	0.6	250	16.0	4.5

Materials:
AG: Completely Zinc-coated Steel
AM: Band--AISI430 Housing--AISI430 With Palted Screw
A4: Band--AISI430 Housing--AISI430 With Screw--AISI410
AN: Band--AISI304 Housing--AISI430 Palted Screw
A3: Band--AISI304 Housing--AISI304 Screw--AISI302
A3 is Used
for Marine, Underground, and other
High Corrosive Applications
