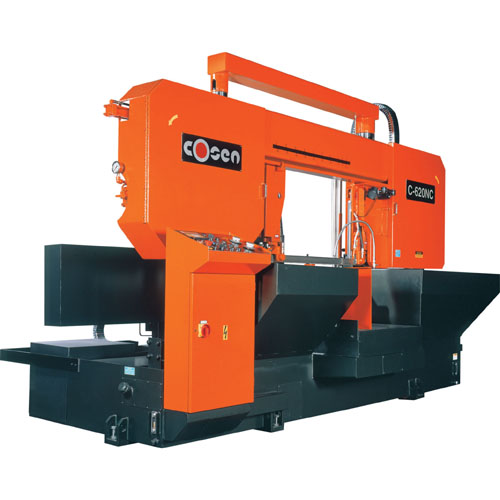

SNC Automatic Saw with Shuttle Vise

SNC Automatic Saw with Shuttle Vise

產品型號:
C-620NC

詳細規格及用途描述

Structure
* Oversized precision ground, large dual columns
* Cross link connecting two columns for enhanced structural strength
* Massive cast iron band wheels
* Hydraulic shuttle vise assembly
Blade Drive
* Specially designed gearbox for high lateral pressure
* Inverter blade drive system
* LED speed indicator
Blade Guidance & Lubrication System
* Hydraulically actuated carbide blade guides with bearing guides
* Two additional guides to support the blade from the top
* Automatic hydraulic blade tensioning device
* Hydraulically actuated heavy duty cast guide arms
* Integral coolant system
* Synchronized power driven blade brush
Control & Automation
* Smart NC-20 (SNC-20) technology programmable up to 20 different jobs
* Automatic kerf compensation & automatic multiple indexing
* "Save-a-Blade" design to prevent tooth deformities
* Error code display for simplified self-diagnostics
* LCD screen with film type key pad, blade speed/life, feed vise position display
* Bundle/single cutting mode switch
* Precision feed pressure & feed rate dual valve system
* Automatic work height selector & air gap eliminator
* Ergonomically located independent control station
Material Feeding & Clamping
* Multiple indexing
* Hydraulically controlled feed vise
* Double retracting vise
* Split vise jaws
* Full stroke hydraulic front and rear vises
* Ductile cast iron vises with replaceable hardened wear plates
* Horizontal take-in rollers
Safety
* Proximity switch for sensing blade slippage or breakage
* Interlock design in electrical and hydraulic system
* Conduits protection measure
* "Alert Orange" safety measure
Standard Accessories
* Blade "clip" device for easy blade change
* Adjustable front plate for cut-off stock
* Additional flushing hose
* Bi-metal saw blade
* Built in work light
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
