Edison Opto Corp.

High power LED lamps

2008/10/08 | By

Edison Opto Corp., a leading Taiwanese packager of high-power LEDs, has recently introduced a number of new products including its EdiLine II family and 20W EdiPower LED.

EdiLine II, whose standard size is 35.8mm x 10.0mm x 1.4mm, is composed of 250-lumen lamps using cool white LED with color temperature posting between 5,000 and 10,000 K, 180-lumen lamps using neutral white LED with color temperature registering between 3,800 and 5,000 K, and 170-lumen lamps using warm white LED delivering color temperature between 2,670 and 3,800 K. They are driven by current at 500mA.

Also in the family are 150-lumen lamps using cool white LED (color temperature: 5,000-10,000K), 110-lumen lamps for neutral white LED (color temperature: 3,800-5,000K) and 100-lumen lamps using warm white LED (2,670-3,800K), which are booted up by current at 350mA.

Circuit designs for this family of lamps are 5 parallel-3 series connection and 10 parallel-3 series connection. Maximum operating voltage is 12V. Resistance to thermal is 6 °C/Watt and maximum junction temperature is 105 Celsius degrees. Average lifespan is estimated at over 15,000 hours.

In addition to cool white, neutral white and warm white, EdiLine II series are available in blue, green and red colors. The lamp family boasts high color rendering performance. They feature linear packaging design, high efficacy, low-power consumption, long operating lifespan, easy installation, and high color rendering index (up to 90).

The company's 20W EdiPower LED lamps measure at 14.5mm x 14.5 mm x 0.7mm, with luminous flux of 1,000 lumens for white LED (color temperature: 5,000 -10,000K), and 780 lumens for neutral white LED (color temperature: 3,800-5,000K) and 620 lumens for warm white LED (color temperature: 2,670-3,800K). They are driven by current at 1,400mA.

EdiPower comes with circuit design of 4 parallel 4 series connection and has operating voltage of 12.0-15.6V. Its thermal resistance is 2 °C/Watt and maximum junction temperature is 105 °C. Average lifespan is estimated to exceed 20,000 hours. In addition to cool white, neutral white, warm white, the lamps are also available in blue, green, amber, and red color. All of them are high CRI types. (KL)

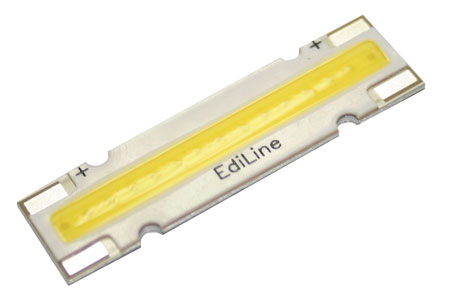

Edison Opto`s EdLine linear lamp is for high-power applications.
Edison Opto`s EdLine linear lamp is for high-power applications.

Edison Opto Corp.

4F, No.800, Chung-Cheng Rd., Chung-Ho City, Taipei, Taiwan

Tel: 886-28227-6996

Fax: 886-28227-6997

E-mail: service@edison-opto.com.tw

Website:www.Edison-opto.com.tw
