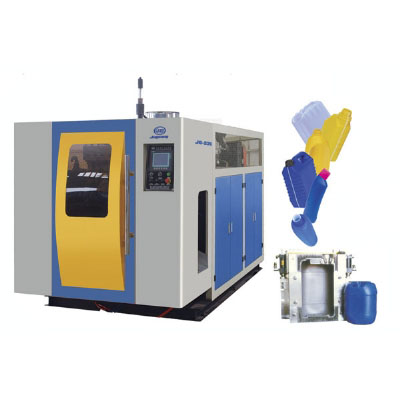

Single Station Blow Molding Machine
- Model:
- JG-S2L/JG-S5L
- Country of Origin:
- China
Detail Specifications / Descriptions
General Infomation
JG-S2L
JG-S5L
Max.Product Volume(L)
2L/1-1L/2
5L/1-2L/2-1L/3-0.6/4
Dry cycle(pc/h)
800
750
Screw Diameter(mm)
50
60~70
Screw L/D ratio
24~25
24~25
Screw motor power(kw)
11
15
Screw heating capacity
3~4
4.8~7.5
No.of heating zone
3
3
Output of HDPE(KG/H)
30~40
50~70
Oil pump driver power
7.5
7.5
Clamping force(KN)
38
60
Mould Stroke
138~368
148~508
Useful mould platen size
300~320
370~390
Max Die diamater(mm)
90
145
Die heat Capacity(kw)
2.8~3.5
3.5~4.3
Blowing pressure(mpa)
0.6
0.7
Air volume
0.4
0.6
Cooling water pressure
0.3
0.3
Size of machie(m)
2.4*1.6*2.18
2.84*1.78*2.6
Weight of machine(Ton)
3.1T
5.8T
