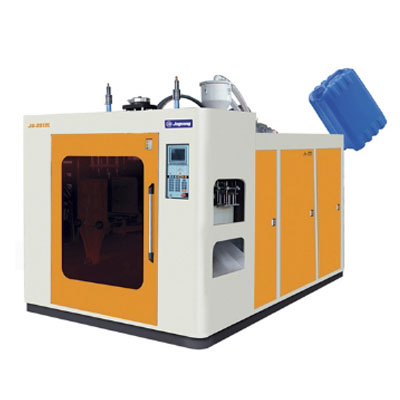

Single & Double Station Automaitc Extrusion Blow Molding Machine
- Model:
- JG-2S12L/JG-2S12L
- Country of Origin:
- China
Detail Specifications / Descriptions
General Infomation
JG-2S12L
JG-2S12L
Max.Product Volume(L)
12L/1-5L/2
12L/1-5L/2
Dry cycle(pc/h)
800
800
Screw Diameter(mm)
90
70
Screw L/D ratio
24~25
24~25
Screw motor power(kw)
37~45
22~30
Screw heating capacity
7.3~9
6.2~8
No.of heating zone
5
3
Output of HDPE(KG/H)
150
100~130
Oil pump driver power
11
11
Clamping force(KN)
110
110
Mould Stroke
300~700
300~700
Useful mould platen size
500*500
500~500
Max Die diamater(mm)
220
220
Die heat Capacity(kw)
4.4~5.5
4.4~5.5
Blowing pressure(mpa)
0.7
0.7
Air volume
0.6
0.6
Cooling water pressure
0.3
0.3
Size of machie(m)
3.5*3.5*2.6
3.3*3.3*2.6
Weight of machine(Ton)
11.2T
7.8T
