Power inverters
Power inverters

Model:60S-12A/E, 60S-24A/E Country of Origin:Taiwan

Detail Specifications / Descriptions

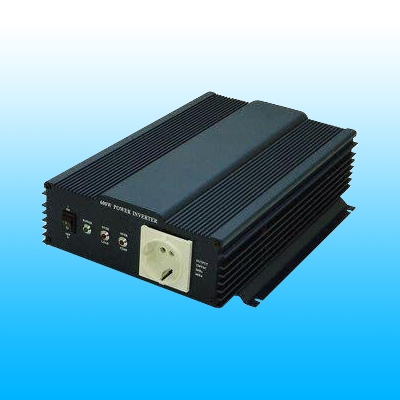

60S-12A/E, 60S-24A/E Pure Sine wave Power Inverter with 600W Continuous Output Power and 10/20V Low Voltage Shutdown

Rated input voltage: 12 to 24V DC
Output power:
Continuous: 600W
15 minutes: 650W
Surge: 1,000W

Maximum input current: 80A/40A
Output voltage: 115V AC, ± 3% and 230V AC, ± 3%
Output frequency: 50 or 60Hz to be specified
Output wave form: pure sine wave
Total harmonic distortion: <3%
Idle current 115V AC: <0.6A and <0.45A
Consumption 230V AC: <0.8A and <0.6A
Input voltage range: 10.7 to 16.5V and 21.4 to 33V
Low voltage alarm: 10.7 and 21.4V
Low voltage shutdown: 10 and 20V
Efficiency: up to 85%
Dimensions: 280 x 236 x 83mm
Weight: 2.46kg
Option remote control: yes
Option GFCI: yes
