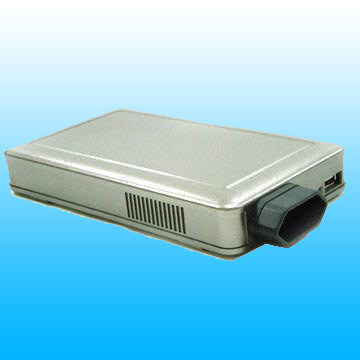

Pure sine wave inverters
Pure sine wave inverters

Model:WT-12S-12E,WT-12S-24E

Detail Specifications / Descriptions

Key Specifications/Special Features:


Specifications:
Output power/continuous: 120W
Output voltage: 230V±3%
Output frequency: 50Hz±1%
Output wave form: pure sine wave
Total harmonic distortion: <3%
Input voltage range: 10 to 16.5 and 20 to 33V
Maximum efficiency: 88%
No load current: <0.5 and <0.3A
Input current maximum: 12 and 7.5A
Low battery shutdown: 10 and 20V
USB power: 5V ±0.1V/500mA
Fan: temperature control
Dimensions (L x W x H): 204 x 105 x 30mm
CE and E-mark approved
Protection:
Input low voltage
Input over voltage
Over temperature
Overload
Short circuit




Main Export Markets:
Eastern Europe
North America
Central/South America
Asia
Western Europe
