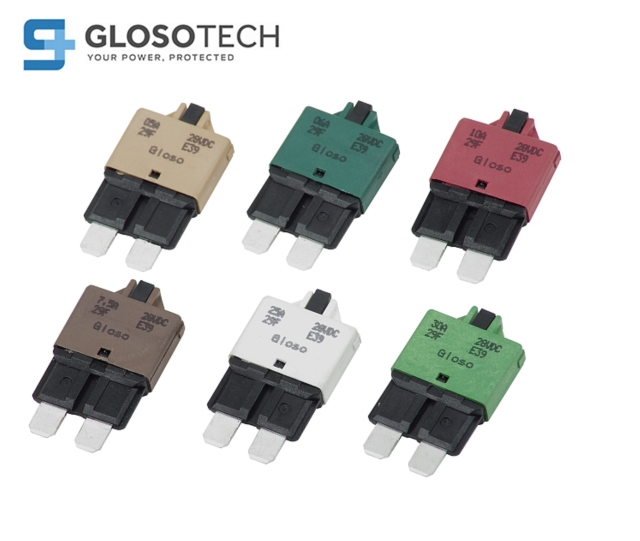

E39 ATO/ATC Circuit Breaker
- Model:
- E39
- Country of Origin:
- China
- Material:
- UL-Rated 94V0 Thermoplastic Body. Tin-Plated
- Color:
- Brown, Green, Red, Blue, Yellow, White
Detail Specifications / Descriptions
E39 Series/ ATC Circuit Breakers
Rating: 5-30A, 28Vdc
Interrupt Rating: 2000A @ 28Vdc
Operating Temp: -40°F(-40°C) to 185°F(85°C)
Storage Temp: -40°F(-40°C) to 260°F(125°C)
Marking: Cover is color coded to amperage ratings
Terminations: 5.2mm wide blades compatible with ATC type fuse blocks
Compliances: SAEJ553; SAEJ1171 (ignition protected), consult factory for time characteristic curves
