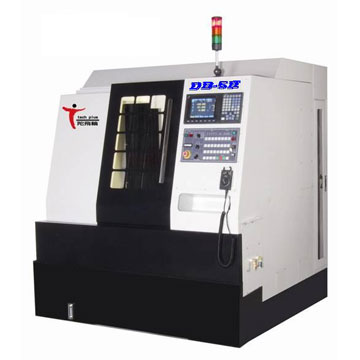

Double Column High Speed Engraving Machine

Double Column High Speed Engraving Machine

Model:
DB-5H
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Applications :
3C precision Mold, Plastic Precision Mold, Auto Parts and Lamp Mold, all kinds of Screw Mold, Die Casting and Precision Stamping Dies, Extrusion Dies, Shoe Mold, Glasses Mold, and other special machine

Machine Features
I.MITSUBISHI high-level control system
1.Three-axis, low-inertia, high-torque motor to do three-axis control, three-axis simultaneous engraving and milling
2.Ultimate PLC human machine interface detect and display each warning message
II.24000RPM built-in high-speed spindle, high-rigidity, high-speed design, with efficiency and the best production
III.Rigidity of 32C cast iron with weather proof development lead to stability and guaranty with no deformation for a long time, provide more stable processing and extend tool life and more efficient
IV.Solid bridge structure, the rigidity on Offset structure on X axis and Counter-positioning on Z axis structure better than double column ones, providing stable and light weight excellent performance
V.Adopt the Geneva drive design 16 Tool Disc Magazine, store variety of tools, and libraries over the tool blade to adopt long-range photoelectric detector detection, tool changing will not occur error as tool handle switch, leaving detection of failure, to ensure that Spindle ATC safety
VI.Each axis is allocated 5 precision bearings, backlash error tends to zero after pre-loading pre-tension hollow precision screw
VII.Japan NSK35mm wide-broad gauge gravity roller slide, with working precision of the ramp Lease assembly, so that processing is more stable
VIII.Each stack of surface contact is precision shovel to assemble accurately. (Shovel skill is non-temperature processing technology to correct the thermal deformation grinding lead to sophisticated assembly and eliminate machine resonance.)
IX.Hermetic separation of electrical heat cabinet, which can effectively isolate heat, grease, increase the stability machine life
X.Rear flush design, which can effectively remove iron filings and easy to clean
XI.Oil-water separation system, cutting fluid and orbital separation of the oil so that dry machining objects and cutting fluid from oil pollution, increase the service life of cutting fluid
XII.Well-designed automatic lubrication systems with metal material pipe, so that each machine does not occur lubrication problem and lubrication pipe burst or aging issues, to ensure the accuracy of transmission parts
XIII.Automatic tool measurement system integrated into the design goal post design, will not interfere with the workpiece, the supporting frames of an empty crate with vertical tool turret doors, to ensure that no residual debris order make tool-change more smoothly
XIV.Isolated fully Enclosed Splash Guard, ergonomic, and to ensure non-leakage cutting fluid and gas doesn't spill, keep the factory clean and in a high degree of personnel safety
XV.BALL BAR dynamic laser positioning and dynamic through the circle check make TECH PLUS machines head for international standards

Machine Specification
Model / Spec. DB - 5H
Controller MITSUBISHI / FANUC / SIEMENS
System WinCE / WinXP
Ethernet RS232 / RJ45
X.Y.Z Travel 520*520*350 mm
X.Y.Z Rapid Traverse 20000 mm/min
Spindle Nose to Table 70-420 mm
Spindle Speed 36000 rpm
Spindle Motor 5 kw
Spindle Taper HSK-E32
ATC 12ATC
Table Size 520*500 mm
Max. Loading 300 kgs
T-Slot 12*4*100 mm
Machine Size 1760*1755*2200 mm
Machine Weight 2800 kgs
Power 10KV
Air 6 kgs/cm2
