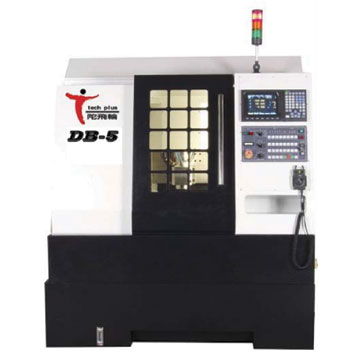

High Speed Microscopic Processing Machine

High Speed Microscopic Processing Machine

Model:
DB-5
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Application areas :
Micro-hole drilling, Burn-in Board, Graphite, Titanium, Semiconductor Wafer Processing, Aerospace Components, and other High-tech Products Specific Machine

Machine Features
I.MITSUBISHI M70 high-level control system
1.Three-axis, low-inertia, high-torque motor to do three-axis control, three-axis simultaneous engraving and milling
2.Ultimate PLC human machine interface detect and display each warning message
3.G05.1Q1 High-speed & high-precision function
II.36000RPM built-in high-speed spindle, high-rigidity, high-speed design, with efficiency and the best production
III.Patented automatic tool changing system, providing accurate tool Automatic Tool Changer and accurate repeat positioning
IV.Full casting body, providing a stable machining process, tool life and processing efficiency of leading the industry, processing more that near non-cleaved edge of the grinding edge
V.90° vertical X-axis structure and anti-standard Z-axis, match vertical beams structural rigidity better than double column ones, provide stable and lightweight performance, effectively inhibit the resonance, arrive at the best cutting surface, extending tool life
VI.Each axis is allocated 4 precision bearings, backlash error tends to zero after pre-loading pre-tension precision screw
VII.Each stack of surface contact is precision shovel to assemble accurately. (Shovel skill is non-temperature processing technology to correct the thermal deformation grinding lead to sophisticated assembly and eliminate machine resonance.)
VIII.Hermetic separation of electrical heat cabinet, which can effectively isolate heat, grease, increase the stability machine life
IX.Rear flush design, which can effectively remove iron filings and easy to clean
X.Oil-Mist filtration system can absorb and filter in the process of cutting oil mist generated in line with environmental protection and personal security
XI.Oil-water separation system, cutting fluid and orbital separation of the oil so that dry machining objects and cutting fluid from oil pollution, increase the service life of cutting fluid
XII.Well-designed automatic lubrication systems with metal material pipe, so that each machine does not occur lubrication problem and lubrication pipe burst or aging issues, to ensure the accuracy of transmission parts
XIII.Automatic tool measurement system designed to do tool length correction, so that processing object to achieve the most accurate
XIV.Isolated fully Enclosed Splash Guard, ergonomic, and to ensure non-leakage cutting fluid and gas doesn't spill, keep the factory clean and in a high degree of personnel safety
XV.BALL BAR dynamic laser positioning and dynamic through the circle check make TECH PLUS machines head for international standards

Machine Specification
Model / Spec. DB - 5
Controller MITSUBISHI M70
System WinCE
Ethernet RS232 / RJ45
X.Y.Z Travel 520*420*200 mm
X.Y.Z Rapid Traverse 20000 mm/min
Spindle Nose to Table 75 - 275 mm
Spindle Speed 36000 rpm
Spindle Motor 5 kw
Spindle Taper HSK-E32
ATC 8
Table Size 420*500 mm
Max. Loading 300 kgs
T-Slot 12*4*100 mm
Machine Size 1700*1750*1900 mm
Machine Weight 2650 kgs
Power 10 kv
Air 6 kgs/cm2
Minimum drilling capacity 0.05mm / s45c / 1.5mm
