WISECHIP SEMICONDUCTOR INC.

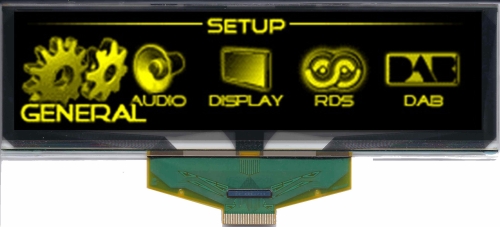

Wide Temperature Range Display 5.50”
Wide Temperature Range Display 5.50”

Model:UG-5664ASGGF01/UG-5664ASYGF01 Country of Origin:Taiwan Color:Green、Yellow

Detail Specifications / Descriptions

• Diagonal Screen Size:5.50"
• Number of Pixels:256 × 64
• Color Depth:16 Gray Scales (Green、Yellow)
• Module Construction:COF
• Module Size (mm):146.00 × 65.00 × 2.00
• Panel Size (mm):146.00 × 45.00 × 2.00
• Active Area (mm):135.65 × 33.89
• Pixel Pitch (mm):0.53 × 0.53
• Pixel Size (mm):0.50 × 0.50
• Weight (g):27.1
• Duty:1/64
• Brightness ( cd/m²):80 (Typ) @ 15V
• Interface:Parallel, 3-/4-wire SPI
• Assembly:Connector
