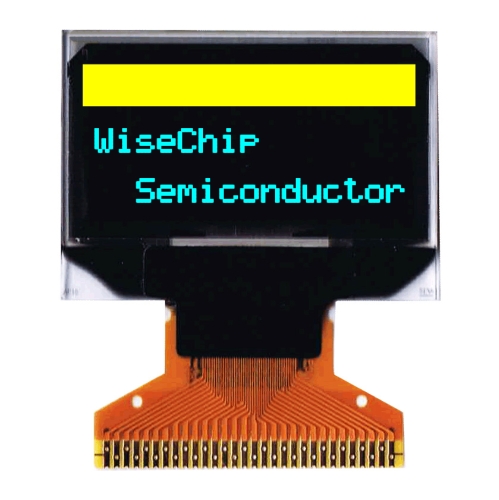

Monochrome / Area Displays 0.96”
- Model:
- UG-2864HMBEG01
- Country of Origin:
- Taiwan
- Color:
- Light Blue+Yellow
Detail Specifications / Descriptions
• Diagonal Screen Size：0.96"
• Number of Pixels：128 × 64
• Color Depth：Monochrome (Light Blue+Yellow)
• Module Construction：COG
• Module Size (mm)：26.70 × 31.26 × 1.45
• Panel Size (mm)：26.70 × 19.26 × 1.45
• Active Area (mm)：21.744 X 11.204
• Pixel Pitch (mm)：0.17 × 0.17
• Pixel Size (mm)：0.154 × 0.154
• Weight (g)：1.54
• Duty：1/64
• Brightness ( cd/m²)：90 (Typ) @ 7.25V
• Interface：Parallel, 3-/4-wire SPI, I2C
• Assembly：Soldering / Hot Bar
